6 Core Armored Fiber Optic Cable Single Mode G652D Fiber For Duct / Arieal
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYFTA53 |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Loose Tube Material | PBT Or Jelly | Outer Sheath Material | PE |
|---|---|---|---|
| Single Armour Material | Corrugated Aluminium Tape | Outer Sheath Color | Black |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Highlight | Double Armoured Optic Fiber Cable, GYTA53 Armoured Optic Fiber Cable, Armoured GYTA53 Fiber Optic Cable |
| Name | Armored Optical Cable | ||
| Highlight | 6 Core Armored Fiber Optic Cable,Armored Fiber Optic Cable Single Mode,Armoured Single Mode Fiber Optic Cable G652D |
||
Product Description
Product Description

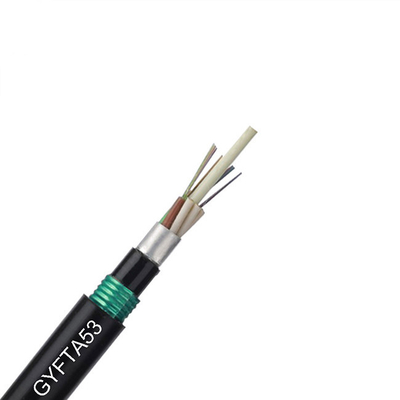

Outdoor Double Armoured GYTA53 Fiber Cable Single Mode optical cable fiber
The structure of GYTA53 optical cable is 250µm optical fiber is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The central strength member is metallic strength member. For some optical fiber cables, central strength member is also extruded with PE inner sheath . Loose case (and filling rope) are stranded around the strength member into a compact and circular cable core which is filled with the water-blocking material to protect it from water ingress. (APL) is longitudinally packed and extruded with a PE inner sheath. And the PSP is longitudinally applied over the PE out sheath.
Application
1. Outdoor direct-buried or duct distribution.
2. Long distance and local area network communication.
3.Multi-cores wiring system in data center
Characteristics
1. Steel tape strengthen.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.
7. Double sheath.
Specifications
| Items | Description | ||||||
| Number of fiber | 2-288cores | ||||||
| Fiber | type | G652D/G657A/OM1/OM2/OM3/OM4 | |||||
| diameter | 250µm | ||||||
| Strength member | materia | Steel tape and E-glass | |||||
| Inner sheath | material | PE | |||||
| diameter | / | ||||||
| Outer sheath | material | PE | |||||
| diameter | 12.5~16.5mm | ||||||
| Cable size (Height * width) | / | ||||||
| Cable weight | 155~255KG±1KG | ||||||
| Installation Temperature range(ºC) | -20+60 | ||||||
| Operation and transport temperature(ºC) | -40+70 | ||||||
| Min Bending Radius(mm) | Long term | 10D | |||||
| Min Bending Radius(mm) |
Short term | 20D | |||||
| Min allowable Tensile Strength(N) |
Long term | 3000 | |||||
| Min allowable Tensile Strength(N) |
Short term | 4000 | |||||
| Crush Load (N/100mm) | Long term | 300 | |||||
| Crush Load (N/100mm) | short term | 1000 | |||||
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | >=400 | >=160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | >=800 | >=500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | >=1302, ≤1322 |
---- | ---- | >= 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*k m) |
≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | >= 1180, ≤1330 |
>=1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
