Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core

  • Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core
Place of Origin Dong Guan China
Brand Name MingTong
Certification ISO
Model Number GYXTW
Minimum Order Quantity 20km
Price 500-5000RNB/KM
Packaging Details Wooden scroll + cardboard box / Wooden scroll + wooden board
Delivery Time It depends on the actual situation.
Payment Terms L/C,T/T
Supply Ability 200km/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Loose Tube Material PBT Or Jelly Outer Sheath Material MDPE / HDPE
Single Armour Material Corrugated Aluminium Tape Outer Sheath Color Black
Waterblocking Material Water Blocking Tape Or Filling Compound Highlight Sm Armoured Fiber Optic Cable, 2-12 F Armoured Fiber Optic Cable, 2-12 F Unitube Fiber Optic Cable
Name Armored Optical Cable
Highlight

Telecommunication Fiber Optic Cable Single Mode

,

Armoured Outdoor Cable 2 core

,

Armoured Outdoor Cable 12 core
Leave a Message
Product Description
Product Description

Telcom Fiber Optic Cable Sm 2-12 F Unitube Outdoor


Description

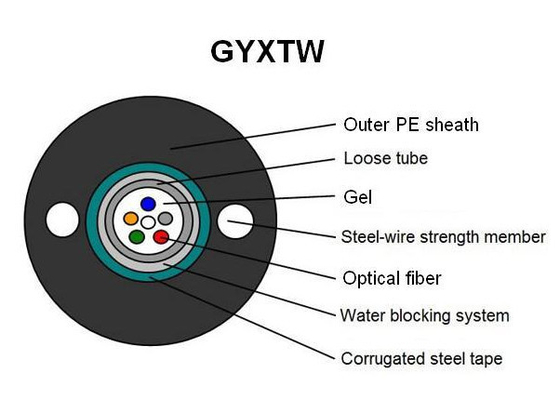

Loose tube with 250μm fibers, filled with water-resistant compound and wrapped with PSP layer longitudinally. Water-blocking material applied between PSP and tube for compactness. Cable has parallel steel wires and PE sheath.


Characteristics


Cable features: good mechanical and temperature performance, hydrolysis-resistant loose tube with high strength, critical fiber protection, crush resistance, flexibility, moisture-proofing PSP, parallel steel wires for strength, small diameter and lightweight for easy installation, and long delivery lengths.


Standards

Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core 0





 G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)		 @850nm

≤3.0 dB/km ≤3.0 dB/km
@1300nm

≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km

@1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth (Class A) @850nm

≥500 MHz·km ≥200 MHz·km
@1300nm

≥1000 MHz·km ≥600 MHz·km
Numerical Aperture

0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm



Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20ºC)		 @850nm

≤3.0 dB/km ≤3.0 dB/km
@1300nm

≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km

@1550nm ≤0.22 dB/km ≤0.23dB/km

Bandwidth (Class A) @850nm

≥500 MHz·km ≥200 MHz·km
@1300nm

≥1000 MHz·km ≥600 MHz·km
Numerical Aperture

0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Technical Parameters
Cable Type Fiber Count Cable Diameter
mm		 Cable Weight kg/km Tensile Strength
Long/Short Term N		 Crush Resistance
Long/Short Term
N/100mm		 Bending Radius
Static
/Dynamic
mm
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D
Storage/Operating Temperature : -40ºC to + 70ºC





Optic Cable Technical data
Fiber Num. Outer diameter (mm) Weight (kg/km) Min.Bending radius(mm) Tension (N) Crash loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-12 8.9 90 10 times O.D. 20 times O.D. 1500 600 1000 300
14-24 10.2 110


Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core 1

Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core 2



Packing & Shipping & Payment

Telecommunication Fiber Optic Cable Single Mode Armoured Outdoor Cable 2 core - 12 core 3
