GYTS PE Jacket Stranded Fiber Optic Cable 96 Core For Aerial / Duct
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Loose Tube Material | PBT Or Jelly | Outer Sheath Material | PE |
|---|---|---|---|
| Single Armour Material | Corrugated Aluminium Tape | Outer Sheath Color | Black |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Highlight | GYTS Armoured OFC Cable, 288 Cores Armoured OFC Cable, 2 Core Armoured Optical Fiber Cable |
| Name | Armored Optical Cable | ||
| Highlight | PE Jacket Stranded Fiber Optic Cable,Stranded Fiber Optic Cable 96 Core,GYTS Stranded Fiber Optic Cable |
||
Product Description
Product Description
Outdoor GYTS Fiber Optical Cable 2-144 Cores Aerial and Duct

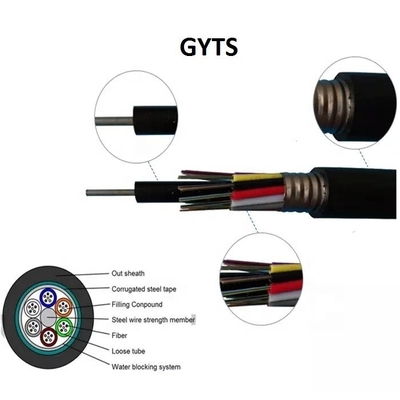

The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.
Applicable fields
1.Aerial / Duct
2.Connecting communication equipments
3.Multi-cores wiring system in data center
Structure characters
1.Corrugated steel tape offers high tension and crush resistance
2.Special gel in the tube offers ceitical protection for the fibers
3.With steel wire central strength member
4.Anti-UV PE jacket
5.Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span.
Technical Data
| Fiber range | Cable outer diameter | Cable weight | Min.bending radius | Allowable tesion(N) | Max.crus loading force(N/1000mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-30 | 9.8 | 115 | ||||||
| 32-36 | 10.6 | 140 | ||||||
| 38-60 | 11.0 | 140 | 10 times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 62-72 | 11.6 | 165 | ||||||
| 74-96 | 13.2 | 205 | ||||||
| 98-120 | 14.7 | 245 | ||||||
| 122-144 | 16.1 | 285 | ||||||
| 146-216 | 16.6 | 300 | ||||||
| 218-240 | 19.8 | 395 | ||||||
| 242-288 | 22.0 | 470 | ||||||
Product show
Packing &delivery
1) Length: 3000m/roll, other length is available according to clients request.
2) Packing: wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
