Corning Armored Fiber Optic Cable Black Outer Sheath GYXTW Fiber Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYXTW |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Loose Tube Material | PBT Or Jelly | Outer Sheath Material | PE |
|---|---|---|---|
| Single Armour Material | Corrugated Aluminium Tape | Fiber Count | 2-36 Core |
| Fiber Type | G652D, Single Mode, OM3 | Outer Sheath Color | Black |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Messenger Material | Steel Wires |
| Highlight | GYXTW Outdoor Armoured Fiber Optic Cable, 10.2mm Outdoor Armoured Fiber Optic Cable, 8.9mm Armoured Ofc Cable | Name | Armored Optical Cable |
| Highlight | Corning Armored Fiber Optic Cable,Outer Sheath GYXTW Fiber Cable,GYXTW Fiber Optic Cable Armored |
||
Product Description
Product Description
12/24 Core Single/Multi Mold Outdoor Armoured Aerial Fiber Optic/Optical Cable (GYXTW)

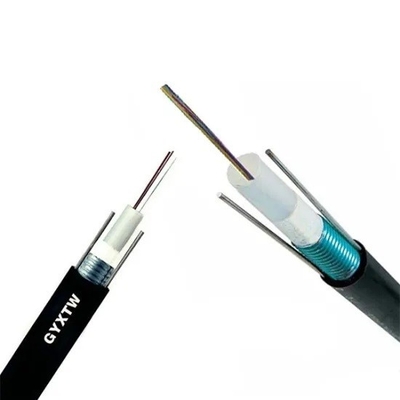

Structure
The central loose tube fiber optic cable is a structure in which the optical fiber is located in the center of the optical cable and is filled with compound and PE jacket outside, reinforced by double steel wires.
Feature
1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties
Specification
| Description The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath. |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
Characteristics
|
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage/Operating Temperature : -40ºC to + 70ºC | ||||||||||||||||||||||||||||||||||||||||||||||||||
Optic Cable Technical data |
||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-12 | 8.9 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 14-24 | 10.2 | 110 | ||||||
Application
Aerial & Duct
