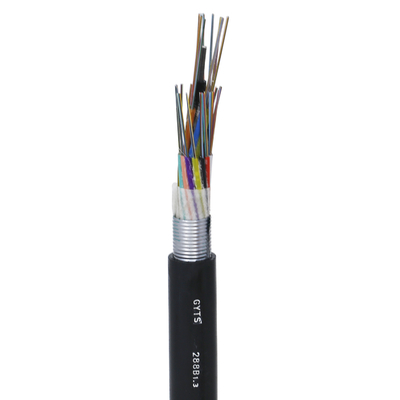

GYTS Steel Armored Fiber Optic Cable Loose Tube PE Sheath For Communication / LAN
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Steel Armored Fiber Optic Cable | Single Armour Material | Corrugated Aluminium Tape |
|---|---|---|---|
| Loose Tube Material | PBT Or Jelly | Outer Sheath Material | PE |
| Outer Sheath Color | Black | Waterblocking Material | Water Blocking Tape Or Filling Compound |
| Messenger Material | Steel Wires | Highlight | GYTS Steel Armored Fiber Optic Cable, Duct Steel Armored Fiber Optic Cable, GYTS 12 Strand Armored Fiber Optic Cable |
| Highlight | GYTS Steel Armored Fiber Optic Cable,Armored Fiber Optic Cable Loose Tube,Communication Armored Fiber Cable |
||
Product Description
Gallery

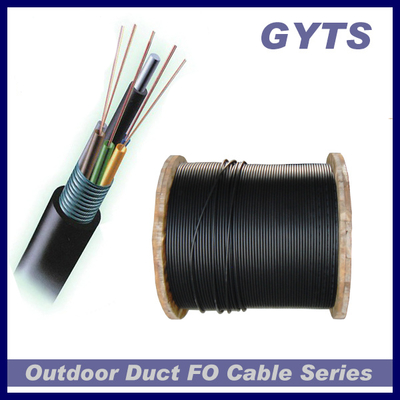

GYTS Steel Armored with PE sheath Fiber Optic Cable For Duct And Aerial with loose tube
Product Description
GYTS / GYTS53 armored steel tape for Fiber Optic Cable for Duct and Aerial

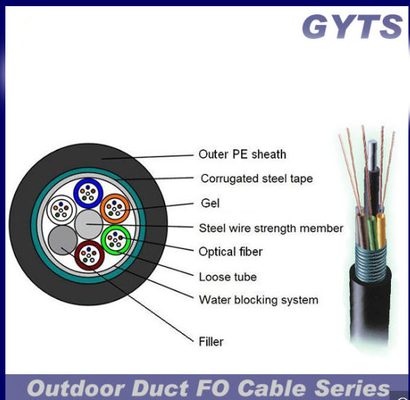

Structure characters
Metallic strengthen member
Single coated PE corrugated steel tape under PE sheath
Properties
Armored steel tape providing maximum ,anti-crush property.
Bullet resistance performance
Recommended laying methods
Aerial, Duct
Applicable fields
Long distance communication and LAN
Technical Data
| Fiber range | Cable outer diameter | Cable weight | Min.bending radius | Allowable tesion(N) | Max.crus loading force(N/1000mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-30 | 9.8 | 115 | ||||||
| 32-36 | 10.6 | 140 | ||||||
| 38-60 | 11.0 | 140 | 10 times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 62-72 | 11.6 | 165 | ||||||
| 74-96 | 13.2 | 205 | ||||||
| 98-120 | 14.7 | 245 | ||||||
| 122-144 | 16.1 | 285 | ||||||
| 146-216 | 16.6 | 300 | ||||||
| 218-240 | 19.8 | 395 | ||||||
| 242-288 | 22.0 | 470 | ||||||
Packing &Delivery&Payment&FAQ
1) Length: 3000m/roll, other length is available according to clients request.
2) Packing: wooden drum
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C
Packaging Details:All of our fiber optic cable package are with export wooden drum. Indoor FTTH cable's wooden dimension is 50x50x32cm, delivery length 3km/drum, Outdoor fiber optic cable's wooden dimension is 100cm*73cm*73cm, 0.54CBM, can be load about 44 drums for a 20GP.
Also accept custom cable drum from customers. welcome to contact us!
