36 72 96 Core Armored Fiber Optic Cable For Connecting Communication Equipments
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Loose Tube Material | PBT Or Jelly | Outer Sheath Material | PE |
|---|---|---|---|
| Single Armour Material | Corrugated Aluminium Tape | Outer Sheath Color | Black |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Messenger Material | Steel Wires |
| Highlight | 96 Core Armored Fiber Optic Cable, GYTS Armored Fiber Optic Cable, 72 Core Shielded Fiber Optic Cable | Name | Armored Optical Cable |
| Highlight | 72 Core Armored Fiber Optic Cable,96 Core Armored Fiber Optic Cable,36 Core Fiber Optic Cable Armoured |
||
Product Description
Product Description

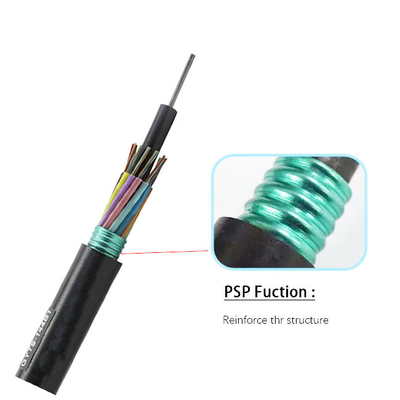

36/72/96 Core Armoured Duct Fiber Optical Fiber Cable GYTS
2-288 Core Optical Fiber Cable including outdoor 2-288 Core Optical Fiber Cable, indoor 2-288 Core Optical Fiber Cable, ftth 2-288 Core Optical Fiber Cable.
2-288 Core Optical Fiber Cable Certificate including REACH,ISO9001, SGS, RoHS. 2-288 Core Optical Fiber Cable capacibility 300km/day. We have varity of 2-288 Core Optical Fiber Cable modules, accept custom and supply OEM, ODM services. We have strong sales team, 24 hours supply consult and quotation for you.
GYTS optic fiber cable Technology Specification
| Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage | |||||||
| Diameter | (N) | (N/100mm) | (MM) | temperature | |||||||||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) | |||||
| 2-60 | 9.8 | 116 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 | ||||
| 62-72 | 10.5 | 146 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 | ||||
| 74-96 | 12.8 | 174 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 | ||||
| 98-120 | 14.5 | 209 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 | ||||
| 122-216 | 15.5 | 271 | 1500 | 600 | 1000 | 300 | 20D | 10D | -20+60 | ||||
| GYTS optic fiber cable Optical Characteristics: : | |||||||||||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber | |||||||||
| A1b:62.5/125 | |||||||||||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | |||||||||||
| G.652D | B2: Zero dispersion shifted | ||||||||||||
| G.655 | B1.2 :Cut-off wavelength shifted | ||||||||||||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive | ||||||||||||
| dispersion shifted single-mode fiber | |||||||||||||
GYTS Fiber Optic Cable Details
GYTS 2-288 Core Optical Fiber Cable Competitive Advantages
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality, competitive prices , fast delivery and good service.
Shipping & Packing &Payment &FAQ
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
