GYXTC8S Self Support Armored Fiber Optic Cable 12 Core Figure 8 For Duct / Aerial
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYXTC8S |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure Section | Structure Section: "8" Figure Cross Section | Loose Tube Material | PBT Or Jelly |
|---|---|---|---|
| Outer Sheath Material | MDPE / HDPE | Single Armour Material | Corrugated Aluminium Tape |
| Outer Sheath Color | Black | Waterblocking Material | Water Blocking Tape Or Filling Compound |
| Messenger Material | Steel Wires | Highlight | GYXTC8S Outdoor Armoured Fiber Optic Cable, 2 Core Armoured Fiber Optic Cable, GYXTC8S Figure 8 Fiber Cable |
| Name | Armored Optical Cable | ||
| Highlight | Self Support Armored Fiber Optic Cable,Armored Fiber Optic Cable 12 Core,GYXTC8S Armoured Fibre Optic Cable |
||
Product Description
Product Description
GYXTC8S Self - Support Outdoor Armoured Fiber Optic Cable
Description
GYTC8S is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTC8S fiber optic cable from 2 fiber cores to 24 fiber cores. Both single mode type and multimode types are available.
The fibers, 260μm, are positioned in a loose tube made of a high modulus plastic.
The tubes are filled with a water-resistant filling compound.
The tube is wrapped with a layer of corrugated steel tape longitudinally.
Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight.
Two parallel steel wires are placed at the two sides of the steel tape.
The cable is completed with PE sheath.
Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- PE/LSZH sheath protects cable from ultraviolet radiation
- 100% cable core filling
Specification
| Cable Parameters | ||
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 260µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube Dimension 2.10mm±0.05mm | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
| Technical Parameter | |||||
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic (mm) |
| 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D |

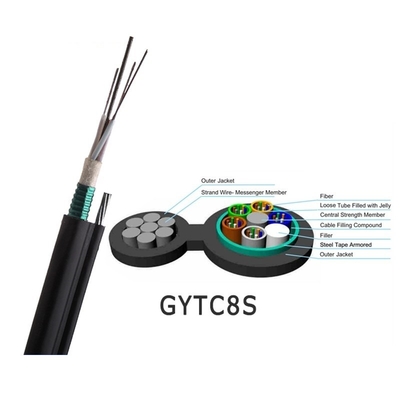

Structure and Product Pictures
Packing & Shipping & Payment
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
