24 Core Outdoor Non Metallic Flame Retardant Optical Power Cable Overhead Optical Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stranded Loose Tube Fiber Optic Cable | Fiber Count | 2-36 Core |
|---|---|---|---|
| Fiber Type | G652D, Single Mode, OM3 | Central Strength Member | Steel Wire |
| Jacket | PE Or LSZH Outer Sheath | Structure | Loose Tube |
| Loose Tube Material | PBT Or Jelly | Waterblocking Material | Water Blocking Tape Or Filling Compound |
| OEM | Available | Application | Telecommunication,Aerial, Duct, Telecom, Network |
| Installation Methods | Aerial&Duct | Operating Temperature | -40 Degree ~ +60 Degree |
| Highlight | 24 Core Optical Power Cable, Flame Retardant Optical Power Cable, Non Metallic Overhead Optical Cable | Name | Outdoor Optical Cable |
| Highlight | 24 core fiber optic cable outdoor,24 core outdoor fiber optic cable,g652d fiber optic cable outdoor |
||
Product Description
24-core outdoor non-metallic flame-retardant optical cable
power overhead optical cable

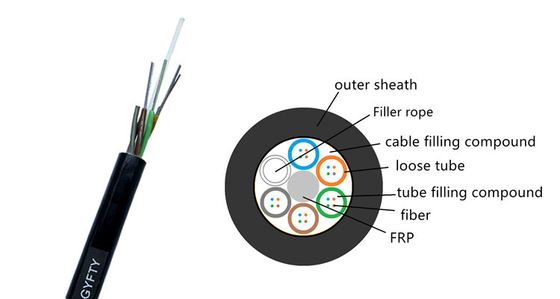

Structure characters
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
Properties
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.
Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Data
Technical data |
||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.2 | 110 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15.0 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 | ||||||
Packaging Detail
GYFTY Optic Fiber Cable package are wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.
