Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable GYXTC8A GYXTC8S
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Outdoor Armored Fiber Optic Cable | Out Jacket | LSZH/PE/PVC |
|---|---|---|---|
| Application | Aerial | Fiber Type | G652D |
| Type | Outdoor Optical Cable Aerial | Oem | Available |
| Installation | Self- Supporting Aerial | Operating Temperature | -40~75 |
| Strength Member | Two Steel Wire | Highlight | Gyxtc8a Armored Fiber Optic Cable, Figure 8 Armored Fiber Optic Cable, Gyxtc8s Armored Fiber Optic Cable |
| Highlight | Figure 8 Outdoor Armored Fiber Optic Cable,Outdoor Armored Fiber Optic Cable GYXTC8A,Armoured Fiber Optic Cable GYXTC8S |
||
Product Description

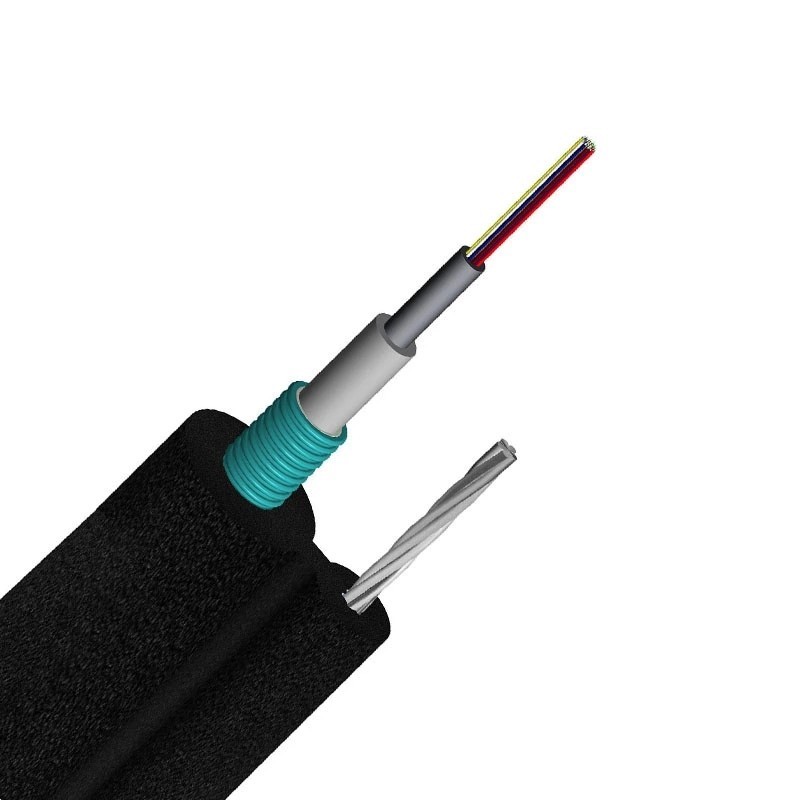

Steel Stranded Figure 8 Outdoor Armored Fiber Optic Cable Gyxtc8a Gyxtc8s

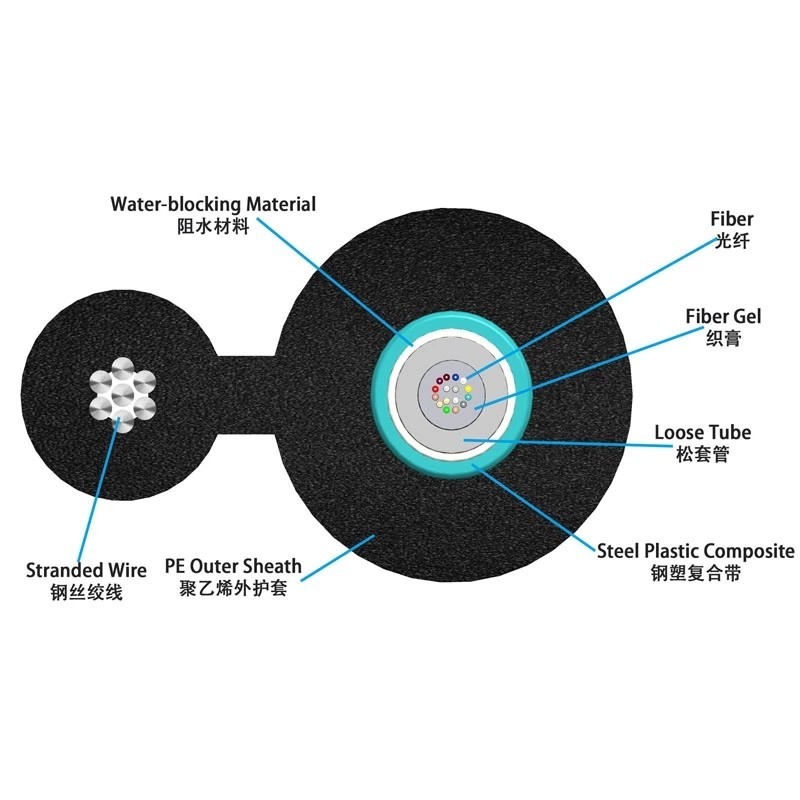

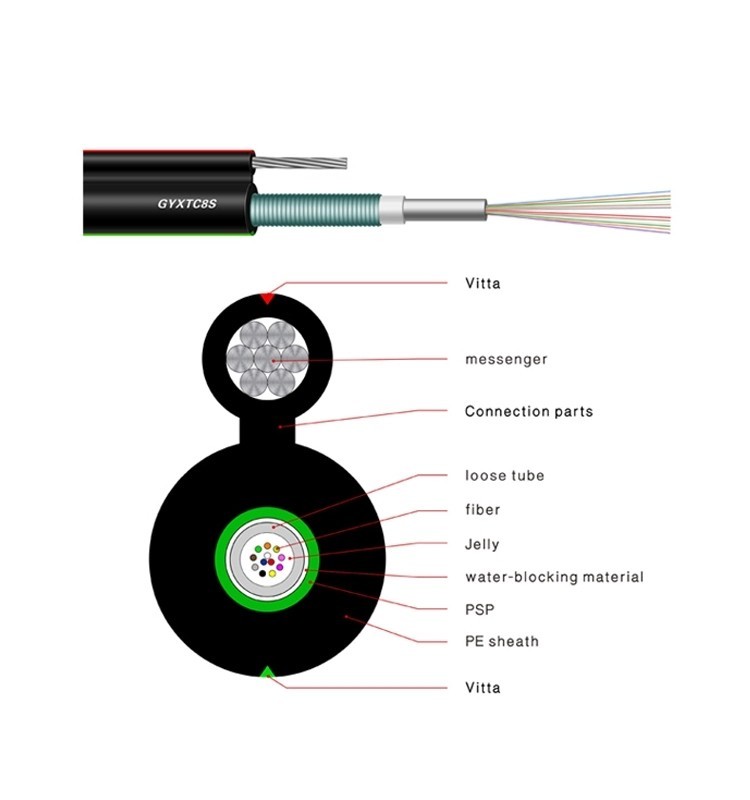

GYXTC8S is a typical outdoor use fiber optic cable for aerial applications; GYXTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multimode GYXTC8S fiber cables from 2-fiber type to 24-fiber type. GYXTC8A
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Spec:
| Fiber Range | outer diameter | weight | Min bending radius | Alowable tension | Max.crush loading force | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10times cable diameter | 20times cable diameter | 1500 | 600 | 1000 | 300 |
| 38-60 | 11.2 | 105 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 | ||||||
| Optical Cable Technical Data | ||||||||||
| Fiber range | Steelmessenger | Cable outer | MESSENGER | Cabe height | Cabe weight | Min-bending | Allowabe | Safe | Min.Brokem | Max.crushed |
| specs | diameter | wire outer | tension | tension | tension | oading force | ||||
| diameter | Dynamic | Long term | ||||||||
| 224 | 1X7-3.0 | 9.8 | 5.2 | 17.5 | 190 | 20times | 4950 | 2500 | 7990 | 1000 |
| 26-36 | 10.3 | 18.8 | 200 | cabe | ||||||
| 38-60 | 10.7 | 19.1 | 235 | diameter | ||||||
| 224 | 1X7-3.6 | 9.8 | 5.8 | 18.1 | 200 | 7100 | 3500 | 10710 | 1000 | |
| 26-36 | 10.3 | 18.9 | 210 | |||||||
| 38-60 | 10.7 | 19.3 | 220 | |||||||
| 62-72 | 11.3 | 19.9 | 245 | |||||||
| 74-96 | 12.9 | 20.1 | 270 | |||||||
| 2-30 | 1X7-4.2 | 9.8 | 6.4 | 18.8 | 210 | 9700 | 4800 | 15550 | 1000 | |
