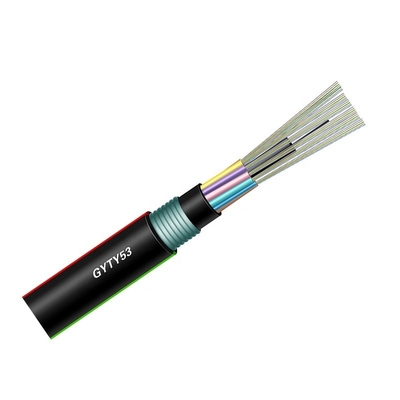

6 Core Outdoor Fiber Optic Cable Single Mode Direct Buried With PE Outer Sheath
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | FTTH, Indoor Wiring System,LAN | Fiber Type | G657A1 Or A2, G652D |
|---|---|---|---|
| Strength Member | Steel Wire | Sheath Material | PE |
| Highlight | Highlight: FTTH Indoor Fiber Cable, Butterfly Shaped Indoor Fiber Cable, Butterfly Indoor Fiber Optic Cable | Loose Tube Material | PBT Or Jelly |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Name | Outdoor Optical Cable |
| Highlight | 6 Core Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable Single Mode,Outdoor Single Mode Fiber Optic Cable |
||
Product Description
Product Description
Outdoor Non-Metallic Mutil-Core Sm Strength Member Fiber Optical Cable
Product Description

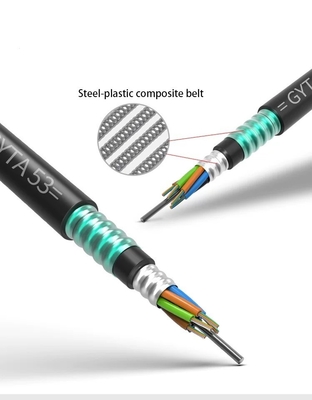

This Outdoor Double Armoured Optic Fiber Cable are suitable for installation in harsh environments where mechanical impact on the cable is to be expected. E. G. Direct buried opplication. Outdoor Double Armoured Optic Fiber Cable are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Features
Excellent optical, mechanical & environmental performance
Moisture-proof & roden-proof
High strength-to-weight ratio
High tensile strength
High crush strength
Corrosion resistance
Very flexible bending radius
Application
Long haul / backbone application
Direct-burial, duct installation
Technical data
Technical data |
||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-24 | 12.6 | 185 | 12.5 times O.D. | 25 times O.D. | 3000 | 1000 | 3000 | 1000 |
| 26-36 | 12.9 | 195 | ||||||
| 38-60 | 13.4 | 200 | ||||||
| 62-72 | 13.9 | 230 | ||||||
| 74-96 | 15.5 | 275 | ||||||
| 98-120 | 17 | 320 | ||||||
| 122-144 | 18.4 | 365 | ||||||
| 146-216 | 18.9 | 385 | ||||||
| 218-240 | 22.1 | 495 | ||||||
| 242-288 | 24.3 | 580 | ||||||
Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate & FAQ
REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate
Company Profile
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this Outdoor Double Armoured Optic Fiber Cable.
