8 Shape GYTC8S Outdoor Fiber Optic Cable 1km Self Supporting Fiber Optic Cable OEM
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Outdoor Optical Cable | Application | Telecommunication, Aerial, Duct, Telecom, Network |
|---|---|---|---|
| Fiber Type | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 | Fiber Count | 2-24 Cores,2-288 Core,2/4/6/8/12 Core |
| Fiber Color | Black,Blue,Grey,Customized,Green | Color | Black,Customized |
| Jacket | PE,MDPE,LSZH | Length | 1 Km 2km 3km Per Drum,2km Or Customized Length |
| OEM | Available | Structure | Unitube |
| Installation | Self- Supporting Aerial,aerial,Aerial & Duct | Operating Temperature | -40~75 |
| Highlight | GYTC8S Outdoor Fiber Optic Cable, 1km Outdoor Fiber Optic Cable, 8 Shape Outdoor Fiber Optic Cable | ||
| Highlight | GYTC8S Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable 1km,Self Supporting Fiber Optic Cable OEM |
||
Product Description

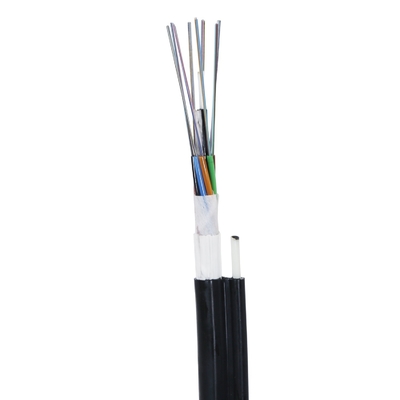

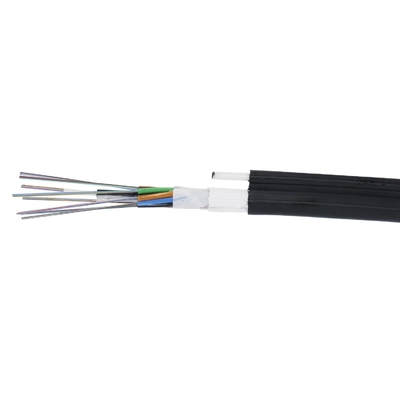

8 Shape 1km GYTC8S Outdoor Fiber Optic Cable
1~144 Core Fiber Optic Cable with 8 Shape Self Supporting Messenger GYTC8S
| Technical data: | ||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min.bend radius | Max. Running tension (N) | Safe running tension (N) | Min.Breaking tension (N) | Max.crush loading (N/100mm) | ||
| Dynamic | Static | Short term | Long term | |||||||||
| 2-12 | 1×7-3.0 | 8.3 | 5.0 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 | 1000 |
Packaging & Delivery:
Packaging Details
wooden drum or as customized.
Delivery Time
According to the order quantity,usually within 1 week

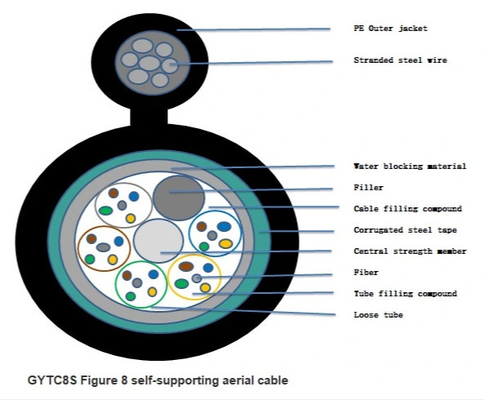

Description
1.250μm Coloured Fiber
2.PBT loose Tube
3.Tube Filling Compound(Gel)
4.APL Moisture barrier
5.Stranded wires as the self-supporting messenger
Characteristics:
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· 100% cable core filling
· PSP enhancing moisture-proof
Standards:
GYTC8YA/S cable complies with Standard YD/Y 1155-2001 as well as IEC 60794-1
Storage/Operating Temperature: -40°C to + 75°C
