GYTC8S Self Supporting Figure 8 Fiber Optic Cable Outdoor for Telecommunication
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTC8S |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Figure 8 Fiber Optic Cable | Application | Telecommunication, Aerial, Duct, Telecom, Network |
|---|---|---|---|
| Fiber Type | G652D, G657A1, G657A2 | Highlight | GYTC8S Outdoor Fiber Optic Cable, Figure 8 Outdoor Fiber Optic Cable, GYTC8S Outdoor Fiber Patch Cable |
| Messenger Diameter | 5.0mm | Messenger | 7*1.0mm Steel Wire |
| Highlight | GYTC8S Figure 8 Fiber Optic Cable,Figure 8 Fiber Optic Cable Outdoor,Self Supporting Fiber Optic Cable Outdoor |
||
Product Description
Product Description

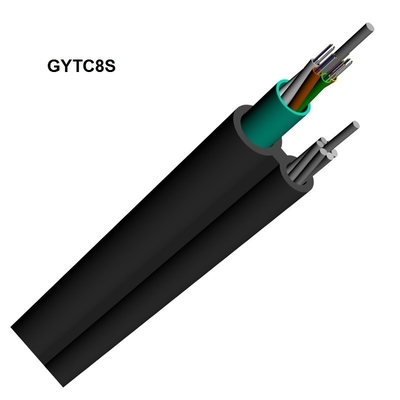

GYTC8S Outdoor Fiber Optic Cable Aerial Self-supported figure 8 optical cable Corrugated Steel Tape Armored
Description:
Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

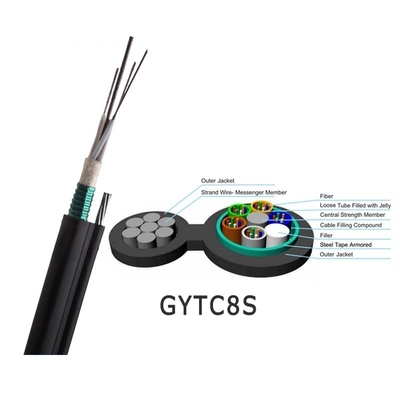

Structure:
- Self-supporting single steel wire,structure of figure 8
- Loose tube stranded, filling with compound
- Central strength member
- PE outer sheath
Feature:
- Self-supporting stranded steel wire(7*1.0mm) structure of figure 8, provides high tensile strength
- Loose tube stranded, special gel in the tube offers ceitical prodection for the fibers
- Anti-UV PE jacket
- Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span
Specification:
Fiber G652D
| Category | Description | Specifications | ||
| Before cabling |
After cabling |
|||
| Optical Specifications | Attenuation @1310 nm | ≤0.34 dB/km (max.) | ≤0.36 dB/km (max.) | |
| Attenuation @1550 nm | ≤0.20 dB/km (max.) | ≤0.22 dB/km (max.) | ||
| Attenuation @1625 nm | ≤0.23dB/km | ≤ 0.25 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324 nm | |||
| Zero Dispersion Slope | ≤ 0.090 ps/nm2·km | |||
|
PMD Link value (M=20cables Q=0.01% ) maximum PMDQ |
0.2 ps/√km | |||
| Cable Cutoff Wavelength (λcc) | ≤1260 nm | |||
|
Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm |
≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB |
|||
| Mode Field Diameter | @1310 nm | 9.2±0.4μm | ||
| @1550 nm | 10.4±0.5μm | |||
|
Dimensional Specifications |
Cladding Diameter | 125 ±0.7μm | ||
| Core/clad concentricity error | ≤0.5μm | |||
| Cladding Non-Circularity | ≤1.0% | |||
|
Mechanical Specifications |
Proof stress | ≥0.69Gpa | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
for more detailed information.
Application:
- Aerial
- Long distance communication and LAN
- Indoor shaft, building wire
