Outdoor Aerial Fiber Optic Cable Anti UV Steel Tape Armoured Ofc Cable PE Jacket
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Steel Tape Armoured Ofc Cable, Aerial Corrugated Armoured Ofc Cable, Anti UV Armoured Ofc Cable | Product Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Fiber Type | G652D | Strength Member | Steel Wire |
| Sheath Material | PE | Fiber Count | 2 Core |
| Water Blocking Material | Water Blocking Material: Water Blocking Tape And Jelly | Waterblocking Material | Water Blocking Tape |
| Name | Armoured OFC Cable | ||
| Highlight | Outdoor Aerial Fiber Optic Cable,Steel Tape Armoured OFC Cable,Armoured Ofc Cable PE Jacket |
||
Product Description
Product Description

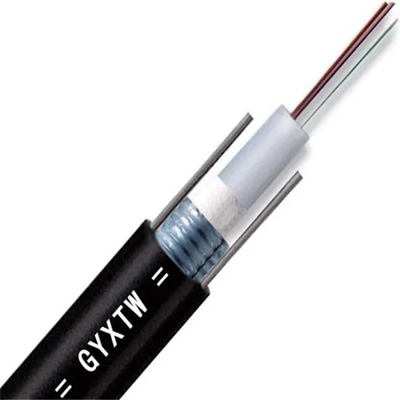

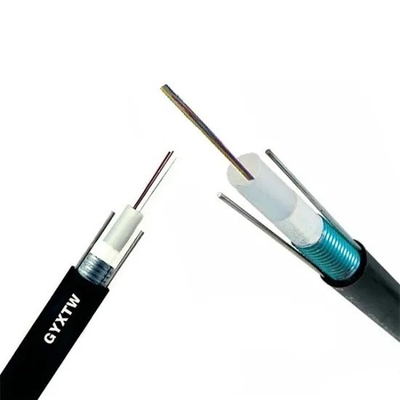

GYXTW
Central Loose Tube Fiber Optic Cable
The fibers are positioned in a loose tube filled with a water-resistant filling compound. Two parallel round steel wires are placed at the two sides of inner PE sheath, outside the central loose tube it is wrapped by water-blocking system, corrugated steel tape is laminated at both side and bonded to PE outer jacket.
Feature:
1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties
Specification:
Optical Charateristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
| 14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
Application:
Aerial & Duct
Related products:
O
Quality Commitment
Our product quality is consistently high. Every drum of cable is carefully tested with stringent criteria. As a result, our cables not only meet, but exceed the industry standard most of the time. We have total quality commitment to follow strictly the emerging standard and ever-changing technologies in data communications.
We produce and test cable comply with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794-1-2-E |
| Max. Operation Tension | IEC 60794-1-2-E1 |
| Crush Test | IEC 6079 -1-2-E3 |
| Impact Test | IEC 60794-1-2-E4 |
| Repeated Bending | IEC 60794-1-2-E6 |
| Torsion Test | IEC 60794-1-2-E7 |
| Cable bend | IEC 60794-1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794-1-2-F1 |
| Water Penetration | IEC 60794-1-2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
