Single Mode Armored Fiber Optic Cable 6 Core - 24 Core GYXTW GYTS GYTA53
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | Mingtong |
| Certification | ISO |
| Model Number | 20km |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Armored Optical Cable | ||
|---|---|---|---|
| Highlight | Single Mode Armored Fiber Optic Cable,Armored Fiber Optic Cable 6 Core,Single Mode Armored Fiber Cable GYTA53 |
||
You can tick the products you need and communicate with us in the message board.
Product Description

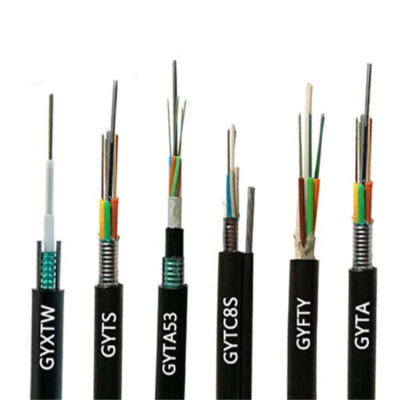

Single Mode Armored Fiber Optic Cable 6-24 Core GYXTW GYTS GYTA53

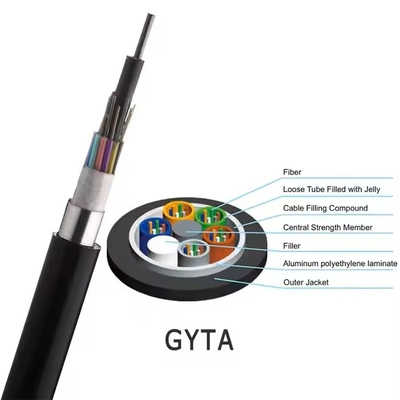

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Key Features
- Excellent mechanical and temperature performance
- Special tube filling compound ensures critical fiber protection and water resistance
- Single steel wire central strength member to withstand axial loads
- PE sheath protects cable from ultraviolet radiation
- 100% core filling water protection to ensure cable watertight
- AL tape longitudinal cover for moisture barrier protection
