Black Lightweight Universal Fiber Optic Cable , Air Blown Fiber Optic Cable Low Friction
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Universal Fiber Optic Cable | Filler Rod | If Necessary |
|---|---|---|---|
| Water Blocking System | Water Blocking Yarn/tape | Strentherning Member | FRP |
| Sheath Material | Black PE | Highlight | Air Assisted Fiber Optic Cable, Low Friction Fiber Optic Cable, Fast Fiber Optic Cable |
| Highlight | Lightweight Universal Fiber Optic Cable,Black Universal Fiber Optic Cable,Air Blown Fiber Optic Cable Low Friction |
||
Product Description
Air Assisted Blown Fiber Optic Cable For Fast Low-Friction Fiber Deployment In Ducts And Microducts

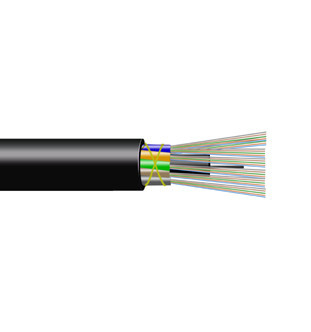

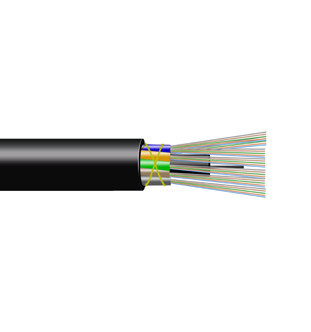

Air-Blown Fiber Optic Cable
Description
OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a FRP central strength member into a compact and circular cable core. The cable is completed with Polyethylene (PE) jacket.
Features
- Small diameter and light weight
- Semi-dry core design,easy for splicing
- Suitable for long distance air blowing installation
Specification
| PARAMETER | UNIT | VALUE |
| Central strength member | FRP | |
| Filler rod | If necessary | |
| Water resistance | Water-blocking yarn/tape | |
| Sheath material | Black PE |
| PARAMETER | UNIT | VALUE | |||
| Temperature | ℃ | -40 to 70 | |||
| Crush | N/100mm | 450 | |||
| Maximum tensileload | N | 1000 | |||
| Minimun bend radius | mm | Installed 20D | |||
| Minimun bend radius | mm | Loaded 10D | |||
| Fiber ount | n | 2-6 | 48-72 | 96 | 144 |
| Nominal weight | kg/km | 16 | 26 | 29 | 48 |
| Nominal outer diameter | mm | 4.3 | 5.4 | 6 | 7.6 |
