GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable

  • GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable
  • GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable
  • GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable
Place of Origin Dongguan CHINA
Brand Name MingTong
Certification ISO
Minimum Order Quantity 20km
Price 300-2000RNB/KM
Packaging Details Wooden scroll + cardboard box / Wooden scroll + wooden board
Delivery Time It depends on the actual situation
Payment Terms L/C,T/T
Supply Ability 200km/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Loose Tube Material PBT Model FC/UPC~SC/UPC
Cable Core 2, 4, 6, 8, 10, 12F Water Blocking System Filling Compound/Dry Water Resistant
Temperature Range Storage -50℃ To +70℃ Fiber Mode Single Mode
Tube Diameter 3.0mm Outer Diameter 2.0*5.0mm
Installation Method Indoor/Outdoor Bend Radius 20x Cable Diameter
Core Type Single Mode Strentherning Member FRP
Cable Diameter 9.0mm Length Per Drum 2KM Or Customized
Type Fiber Drop Cable Highlight Mini Locatable Fiber Optic Cable, Electric Hybrid Fiber Optic Cable
Name Universal Fiber Optic Cable
Highlight

Armored Loose Tube Fiber Optic Cable

,

Loose Tube Armored Fiber Optic Cable

,

All Dielectric Fiber Optic Cable Loose Tube
Leave a Message
Product Description

GYFXTY Glass Yarn Armored Uni-Loose Tube All Dielectric Optical Fiber Cable



Flat Toneable Unit Tube Mini Locatable Electric Hybrid Flat Optical Fiber Cable

GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable 0GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable 1GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable 2

Description

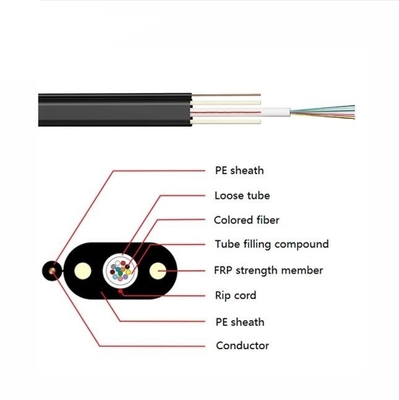

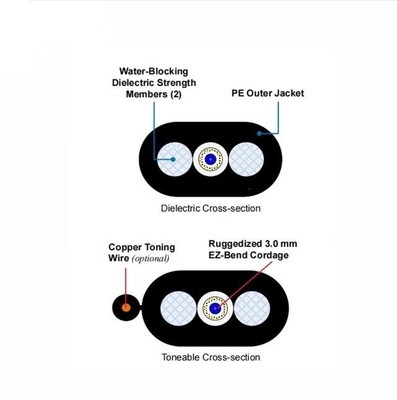

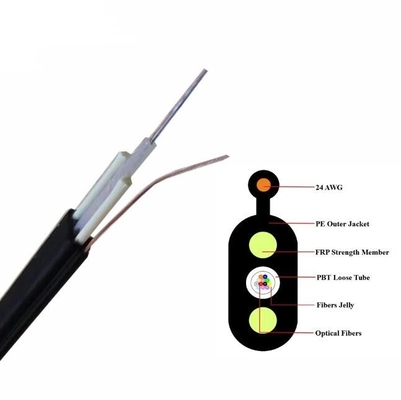

OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a FRP central strength member into a compact and circular cable core. The cable is completed with Polyethylene (PE) jacket.



Features

  • Small diameter and light weight
  • Semi-dry core design,easy for splicing
  • Suitable for long distance air blowing installation

Specification

GYFXTY Glass Yarn Armored Loose Tube Fiber Optic Cable , All Dielectric Fiber Optic Cable 3
