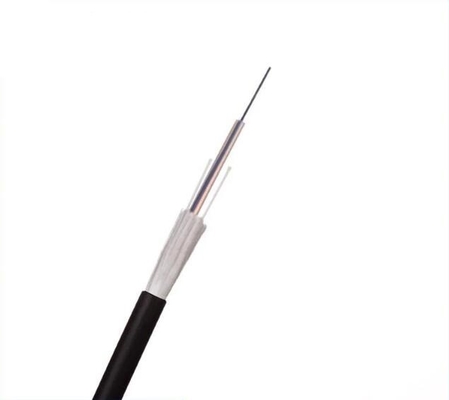

GYFXTY Glass Yarn Armored Fiber Optic Cable Uni Loose Tube All Dielectric Optical Fiber Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Applocation | Indoor/Outdoor | Outer Jacket | LSZH |
|---|---|---|---|
| Shape Or Structure | Can Be Produced As Per Buyer's Request | OEM | Yes |
| Jacke | PVC Or LSZH | Reinforce | Steel Or FRP |
| Cable Dimension | 3.1*2.0mm | Cable Material | LSZH/PVS/ZRPO/OFNR/OFNP/PE |
| Construction | Steel Messenger | Tensile Strength | 100N, 200N, 300N |
| Fiber Count | 1-4 Fibers | Keyword | FTTH Drop Cable |
| Fiber Type | Single-mode G.657A2 | Highlight | All Dielectric Optical Fiber Cable, GYFXTY Uni-Loose Tube Cable |
| Name | Universal Fiber Optic Cable | ||
| Highlight | Glass Yarn Armored Fiber Optic Cable,GYFXTY Armored Fiber Optic Cable,Uni Loose Tube All Dielectric Optical Fiber Cable |
||
Product Description

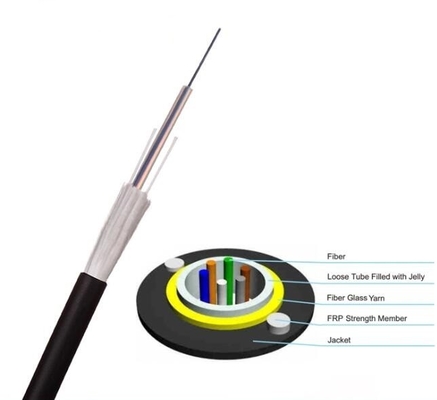

GYFXTY Glass Yarn Armored Uni-Loose Tube All Dielectric Optical Fiber Cable
Appicable fieds
1.Long-distance communication, LAN
2.Moisture-proof and rodent-proof
Characteristics
1.Corrugated aluminum tape offers high tension and crush resistance.
2.Special gel in the tube offers ceitical protection for fibers
3.With steel wire central strength member
4.Anti-UV PE jacket
5. Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life-span.
Technical data
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | ||||||
| 38-60 | 10.7 | 115 | ||||||
| 62-72 | 11.3 | 140 | ||||||
| 74-96 | 12.9 | 175 | ||||||
| 98-120 | 14.4 | 210 | ||||||
| 122-144 | 15.8 | 245 | ||||||
| 146-216 | 16.3 | 260 | ||||||
| 218-240 | 19.5 | 345 | ||||||
| 242-288 | 21.7 | 415 | ||||||
| GYTA Aluminium Tape Armored G652D Fiber Optic Cable for Duct or Aerial Application | ||||||
| Description and Standards : | ||||||
| The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. |
||||||
| GYTA fiber cable complies with Standard YD/T 901-2001as well as IEC 60794-1. | ||||||
| Characteristics: | ||||||
| Good mechanical and temperature performance; | ||||||
| High strength loose tube that is hydrolysis resistant; | ||||||
| Special tube filling compound ensure a critical protection of fiber; | ||||||
| Specially designed compact structure is good at preventing loose tubes from shrinking; | ||||||
| PE sheath protects cable from ultraviolet radiation; | ||||||
| The following measures are taken to ensure the cable watertight: | ||||||
| (1)Steel wire used as the central strength member; | ||||||
| (2)Loose tube filling compound; | ||||||
| (3)100% cable core filling; | ||||||
| (4)APL moisture barrier. | ||||||
