Loose Tube Stranded GYTS Fiber Cable 24 Core Fiber Optic Cable Single Mode
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 300-2000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Type | Single Mode | Strength Member | Steel Wire |
|---|---|---|---|
| Highlight | KGYTS Fiber Optic Cable | Jacket | PE |
| Fiber | G652D, G657A1, G657A2 | Application | Duct,aerial,Telecom/network |
| Name | Universal Fiber Optic Cable | ||
| Highlight | Loose Tube Stranded GYTS Fiber Cable,GYTS Fiber Cable 24 Core,24 Core Fiber Optic Cable Single Mode |
||
Product Description
Product Description

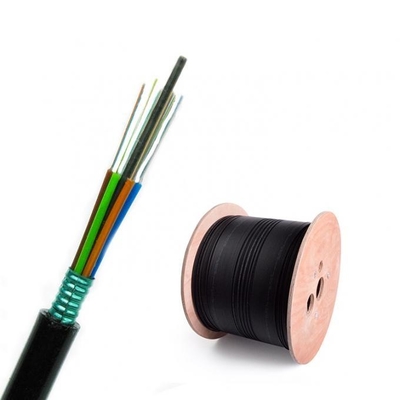

Loose Tube Stranded GYTS Outdoor Aerial and Duct
24 Core Single Mode Fiber Optic Cable
Description

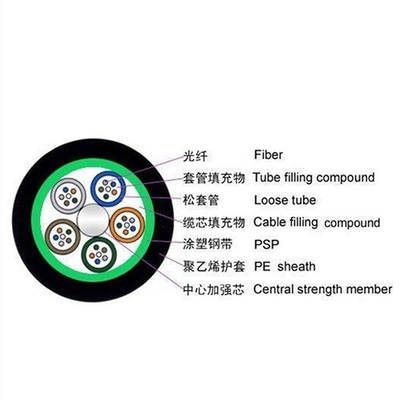

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Features
- Multi-tube model: Steel tape Armoured steel band structure, excellent mechanical and environmental performance.
- Rational design and accurate control of excessive length of the optical cable inside the loose tube so as to guarantee superior mechanical and environmental performance.
- Single PE jacket, improve moistureproof high intensity, good counter side pressure resistant capability.
Speicfication
|
Fiber Count |
Diameter (mm) | Cable weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic (mm) |
| 2~30 | 9.6 | 90 | 600/1500 | 800/1000 | 10D/20D |
| 32-36 | 10.0 | 97 | 600/1500 | 800/1000 | 10D/20D |
| 38-60 | 10.4 | 112 | 600/1500 | 800/1000 | 10D/20D |
| 62-72 | 11.0 | 130 | 600/1500 | 800/1000 | 10D/20D |
| 74-96 | 12.5 | 165 | 600/1500 | 800/1000 | 10D/20D |
| 98-120 | 14.0 | 190 | 600/1500 | 800/1000 | 10D/20D |
| 122-144 | 16.5 | 245 | 600/1500 | 800/1000 | 10D/20D |
Packing & Shipping
With iron-wooden drum, With plastic protection caps.Attenuation performance data for each fiber inside
