Outdoor Aireal ADSS OFC Cable Single Mode 24 Core Waterproof For Power Telecommunication
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication | Type | Single Mode |
|---|---|---|---|
| Size | 24 Core | Fiber Type | Single Mode |
| Jacket | PVC Outer Sheath | Structure | Loose Tube |
| Length | As Required | Operating Temperature | -40 ~ +60 C |
| Highlight | Single Mode Aireal ADSS OFC Cable, 24 Core Aireal ADSS OFC Cable, 24 Core Outdoor Adss Fiber Cable | Name | ADSS Cable |
| Highlight | Outdoor Aireal ADSS OFC Cable,ADSS OFC Cable Single Mode,ADSS OFC Cable 24 Core |
||
Product Description
Outdoor Aireal Single Mode 24 Core ADSS Fiber Optic Cable
Description

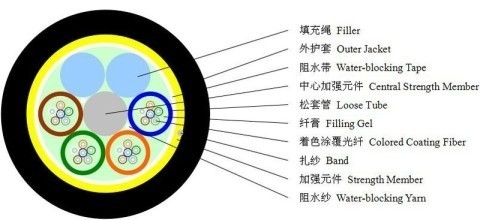

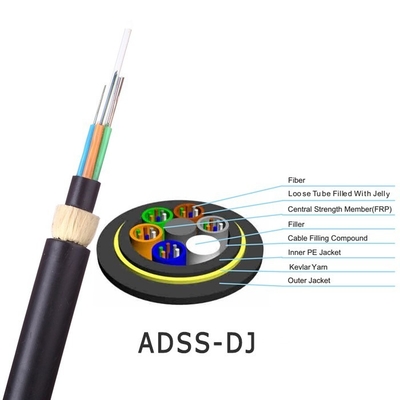

The ADSS cable is twisted in a loose tube. The structure of the optical cable is to sheath a 250μm optical fiber into a loose tube made of high modulus plastic, which is filled with a waterproof filling compound. The tube (and filler) is twisted around FRP (fiber reinforced plastic) as a non-metallic central strength member to form a compact circular cable core. After filling the cable core with filler, the outer layer is a thin polyethylene inner sheath, and the inner sheath adopts the aramid fiber stranded layer as the reinforcing member, and then the cable is made of PE.
Characteriatic
1. Can be installed without shutting off the power
2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kv
Parameter
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm |
Cable Weight kg/km | Max working tension kN | Strength member CSA mm2 | Modulus of elasticity kN/mm2 |
| ADSS | 2 | 1 | 4 | 12.5 | 136 | 1.5 | 4.6 | 7.6 |
| ADSS | 4 | 2 | 3 | 13.0 | 142 | 2.25 | 7.6 | 8.3 |
| ADSS | 8 | 3 | 2 | 13.3 | 148 | 3.0 | 10.35 | 9.45 |
| ADSS | 10 | 4 | 1 | 13.6 | 156 | 3.6 | 13.8 | 10.8 |
| ADSS | 12 | 5 | 0 | 13.8 | 159 | 4.5 | 14.3 | 11.8 |
| ADSS | 14 | 6 | 0 | 14.5 | 177 | 5.4 | 18.4 | 13.6 |
| ADSS | 16 | 4 | 1 | 14.9 | 185 | 6.75 | 22.0 | 16.4 |
| ADSS | 20 | 5 | 0 | 15.1 | 193 | 7.95 | 26.4 | 18.0 |
| ADSS | 24 | 6 | 0 | 15.5 | 201 | 9.0 | 32.2 | 19.1 |
| ADSS | 28 | 7 | 1 | 15.6 | 208 | 10.5 | 33.0 | 19.6 |
| ADSS | 32 | 8 | 0 | 16.3 | 226 | 12.75 | 40.0 | 21.0 |
| ADSS | 36 | 9 | 1 | 16.8 | 242 | 15.45 | 48.0 | 24.0 |
| ADSS | 42 | 10 | 0 | 17.2 | 253 | 16.2 | 51.0 | 25.1 |
| ADSS | 48 | 11 | 1 | 17.9 | 266 | 18.0 | 58.8 | 25.1 |
Optical Characteristic
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation(+20ºC) |
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
ADSS Fiber Optic Cable Details
| ADSS Fiber Optic Cable Technology Specification | ||||||||
| Ref.outer diameter (mm) |
Ref.weight kg/km Weight |
Ref.daily max.working tension (kN) |
Max allowable working tension (kN) |
Break strength (kN) |
Strength member CSA (mm2) |
Modulus of elasticity kN/ (mm2) |
Heat expansion coefficient ×10-6 /k | |
| PE sheath | AT sheath |
|||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | -0.4 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.5 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.8 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.8 |
| ADSS optic fiber cable Optical Characteristics: : | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657(A1,A2 ,B3) | B4: Main technical data for positive | |||
| dispersion shifted single-mode fiber | ||||
