Double Sheath Fiber Optic Cable 6 Core Outdoor Waterproof ADSS OFC Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No | ADSS | Loose Tube Material& Filling Material | PBT&Jerry |
|---|---|---|---|
| Central Strength Member | Non-Metallic | Maximum Span | 1500m |
| Color Of Loose Tube | Blue, Orange,Green , Brown,Red Etc | Strength Material | High Flexible Amaid Yarn |
| Core Moisture Protection Methodology | Water Blocking Tape Or Filling Compound | Installation Style | Self-Support Aerial |
| Highlight | Outdoor 6 Core Fiber Optic Cable, ADSS 6 Core Fiber Optic Cable, 6 Core ADSS OFC Cable | Name | ADSS Cable |
| Highlight | Outdoor Fiber Optic Cable 6 Core,Double Sheath Fiber Optic Cable,Outdoor Waterproof ADSS OFC Cable |
||
Product Description

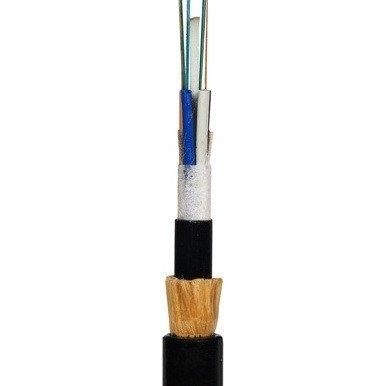

6 Core Double Sheath Of The Fiber Optic Cable For Outdoor With High Waterproof ADSS OFC Cable
Hot sale list price double sheath outdoor 6 core fiber optic cable ADSS
Overview
Product Description

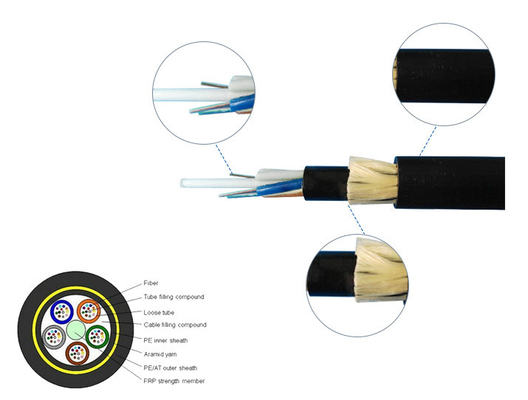

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Feature
1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling
Technical Data
