Black Sheath Fiber Optic Cable 4 Core ADSS Loose Tube Fiber Optic Cable 200m 300m 400m
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 20km |
| Price | 500-5000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No | 4 Core ADSS Fiber Optic Cable | Fiber | Single Mode Or Multi Mode |
|---|---|---|---|
| Strength Material | High Flexible Amaid Yarn | Cable Color | Black |
| Highlight | 4 Core All Dielectric Self Supporting Cable, 200m All Dielectric Self Supporting Cable, 300m All Dielectric Self Supporting Cable | Name | ADSS Cable |
| Highlight | Black Sheath Fiber Optic Cable,Sheath Fiber Optic Cable 4 Core,Loose Tube Fiber Optic Cable 200m |
||
Product Description
Product Description

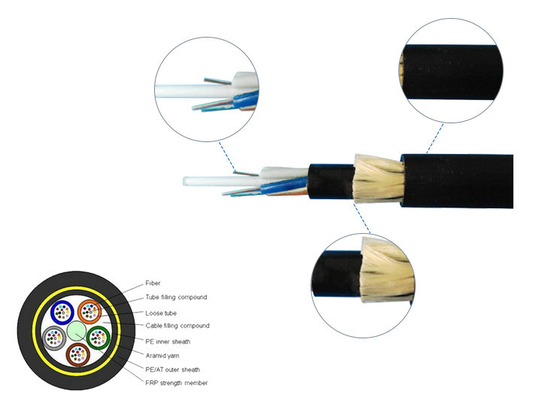

All Dielectric Self Support 4 Core ADSS Fiber Optic Cable
ADSS cables are designed for airborne self-supporting applications over various distances. ADSS cables provide a fast and economical deployment method for cable TV operators, telephone companies and power companies. Suitable for high-voltage power transmission systems , Medium and small spans, or rivers, mountains and other complex terrain.
Advantages
1. Up to 144 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applications
1.Railways and Telecommunications pole route.
2.Low-voltage transmission and distribution system.
3.Long distance and local area network communication.
4.Network in high electromagnetic interfering places.
Cable Performance Parameter
| Span meter | 200 | 300 | 400 |
| Related Strength Tension(RTS) | 17.5 kn | 20.6 kn | 28 kn |
| Max Allowable Tension(MAT) | 6.9 kn | 8.2 kn | 11.5 kn |
| Allowable Crush Resistance | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm | Long Term: 1100 n/100mm |
| Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | Short Term: 2200 n/100mm | |
| Minimum Bending Radius | Operating: 220 mm | Operating: 220 mm | Operating: 220 mm |
| Installlation: 360 mm | Installlation: 360 mm | Installlation: 360 mm | |
| Temperature Range | Operating: -40 /+70℃ | Operating: -40 /+70℃ | Operating: -40 / +70℃ |
| Installlation: -15 / +60℃ | Installlation: -15 / +60℃ | Installlation: -15 / +60℃ | |
| Out Sheath Material | Electrical Resistance AT (Borealis material 6081) Sheath | ||
| Note | ice accretion 5MM,weed speed:30M/S | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
