Central Loose Tube Figure 8 Self Black Color Self Supporting Aerial Cable , 12 Core F for Outdoor
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Structure Section | "8" Figure Cross Section | Single Armour Material | Corrugated Aluminium Tape |
|---|---|---|---|
| Loose Tube Material | PBT Or Jelly | Outer Sheath Material | MDPE / HDPE |
| Outer Sheath Color | Black | Waterblocking Material | Water Blocking Tape Or Filling Compound |
| Operating Temperature | -40 Degree ~ +60 Degree | Installation Methods | Self-Support Aerial |
| Highlight | Figure 8 Self Supporting Aerial Cable, 12 Core Self Supporting Aerial Cable, Loose Tube Self Supporting Aerial Cable | Name | Outdoor Optical Cable |
| Highlight | loose tube self supporting aerial cable,loose tube self supporting aerial telephone cable,12 core self supporting aerial cable |
||
Product Description
Central loose tube figure 8self --Black Color Self Supporting Aerial Cable , 12 Core F

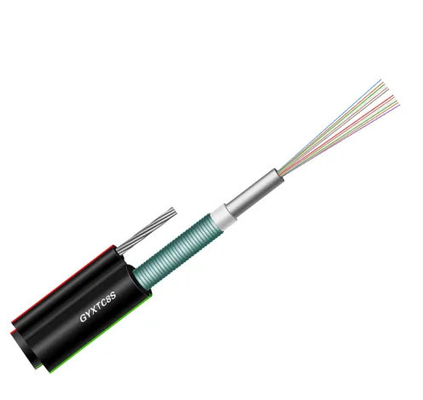

GYXTC8S Outdoor Self-Support 12 Core Fiber Optic Cable
Product Description
This GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable has been designed for long haul / backbone application. GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable are designed for easy and economical installation.
Structure &Properties
1. Up to 24 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.

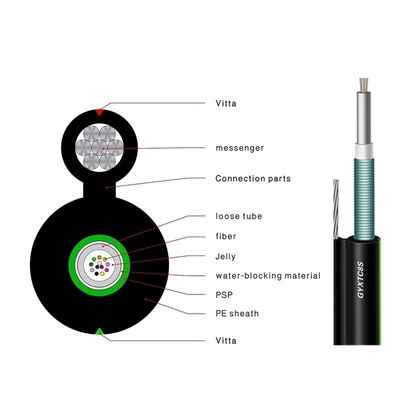

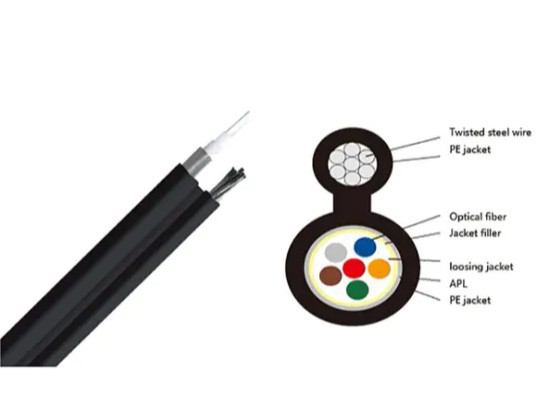

3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
Applicable Fields
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
Technical Date
Technical data |
||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min.bend radius | Max. Running tension (N) | Safe running tension (N) | Min.Breaking tension (N) | Max.crush loading (N/100mm) | ||
| Dynamic | Static | Short term | Long term | |||||||||
| 2-12 | 1×7-3.0 | 8.3 | 5.0 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 | 1000 |
