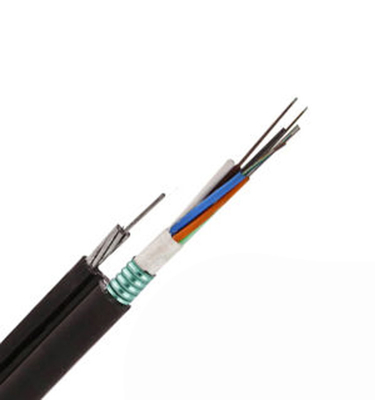

12 24 72 96 Core FIG8 Aerial GYTC8S Loose Tube Stranded Fiber Optical Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Self-support Outdoor Optic Fiber Cable | Cable Sturcture | Figure 8 |
|---|---|---|---|
| Messenger Diameter | 5.0mm | Messenger | 7*1.0mm Steel Wire |
| Strength Member | Steel Wire | Highlight | GYTC8S Fiber Optical Cable, FIG8 Fiber Optical Cable, 96 Core Aerial Fiber Optic Cable |
| Name | Outdoor Optical Cable | ||
| Highlight | gytc8s fiber optic cable outdoor,gytc8s outdoor fiber optic cable,loose tube fiber optic cable outdoor |
||
Product Description
12/24/72/96 Core Fig8 Aerial GYTC8S Fiber Optical Cable
TW-SCIE is Alibaba.com Assessed Supplier. 6 Core Fiber Optic Cable including outdoor 6 Core Fiber Optic Cable, indoor 6 Core
Fiber Optic Cable, ftth 6 Core Fiber Optic Cable.TW-SCIE 6 Core Fiber Optic Cable are widly used for communication, medical, military.
The laying method including aerial, duct, direct burial, underwater, marine.
6 Core Optical Fiber Cable Certificate including REACH,ISO9001, SGS, RoHS. 6 Core Optical Fiber Cable capacibility : 300km/day. We have varity of 6 Core Optical Fiber Cable modules, accept custom and supply OEM, ODM services. We have strong sales team, 24 hours supply consult and quotation for you.
Competitive Advantages
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service
Characteristics
1.Corrugated steel tape armored, double PE sheath provides high tesile strength and crush
2.Special gel in the tube offers ceitical protection for the fibers
3.Steel wire or FRP as central strength member
4.Anti-UV PE jacket
5.Resistant to high and low temperature changes, resulting in anti-aging and longer life-span
Specification
Fiber G652D
| Category | Description | Specifications | ||
| Before cabling | After cabling | |||
| Optical Specifications | Attenuation @1310 nm | ≤0.34 dB/km (max.) | ≤0.36 dB/km (max.) | |
| Attenuation @1550 nm | ≤0.20 dB/km (max.) | ≤0.22 dB/km (max.) | ||
| Attenuation @1625 nm | ≤0.23dB/km | ≤ 0.25 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324 nm | |||
| Zero Dispersion Slope | ≤ 0.090 ps/nm2·km | |||
|
PMD Link value (M=20cables Q=0.01% ) maximum PMDQ |
0.2 ps/√km | |||
| Cable Cutoff Wavelength (λcc) | ≤1260 nm | |||
|
Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm |
≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB |
|||
| Mode Field Diameter | @1310 nm | 9.2±0.4μm | ||
| @1550 nm | 10.4±0.5μm | |||
|
Dimensional Specifications |
Cladding Diameter | 125 ±0.7μm | ||
| Core/clad concentricity error | ≤0.5μm | |||
| Cladding Non-Circularity | ≤1.0% | |||
|
Mechanical Specifications |
Proof stress | ≥0.69Gpa | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
for more detailed information.

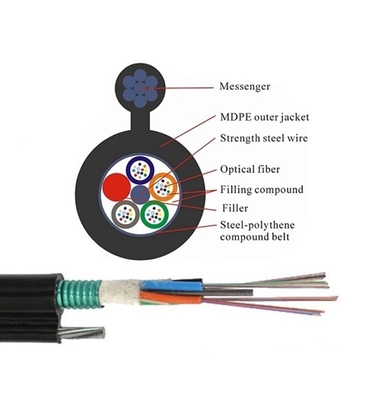

GYTC8S Fiber Optic Cable Details
