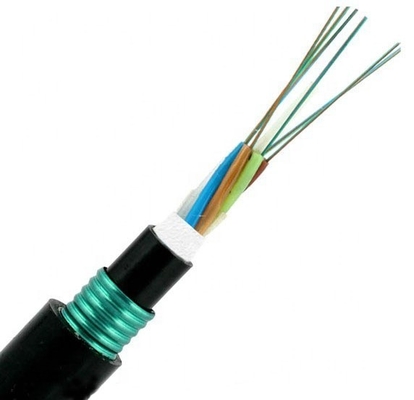

24 core GYTS53 Outdoor Optical Fiber Cable Direct Buried Stranded Loose Tube Steel Armored
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 2-288 Fibers | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Central Strength Member | Steel Wire | Armor | Corrugated Steel Tape |
| Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) | Application | Aerial, Duct, Telecom |
| Highlight | GYTS53 Outdoor Optical Fiber Cable, 24 Core Outdoor Optical Fiber Cable, GYTS53 Direct Burial Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | gyts53 fiber optic cable outdoor,gyts53 outdoor fiber optic cable,armored fiber optic cable outdoor |
||
Product Description
Outdoor Fiber Optic Cable GYTS53 Direct Buried Stranded Loose Tube Armored Cable
Description
The GYTS53 cable contains single-mode/multimode fibers that are placed in loose tubes. These tubes are filled with a water-blocking filling compound, and both the tubes and fillers are then stranded around the strength member to form a circular cable core. A Plastic Steel Plastic (PSP) is applied to protect the core, which is also filled with the filling compound. Finally, a thin PE sheath is added to complete the cable. The PSP is applied over the inner sheath, and then the cable is finished with a PE outer sheath.
Features
To ensure the cable's water blocking performance, the following measures are taken: a single steel wire is used as the central strength member, a special water-blocking filling compound is used in the loose tube, and the cable core is 100% filled, with an APL and PSP moisture barrier.
Application
Fiber optic cables can be categorized as aerial, duct, or outdoor cables.
Specifications
| Cable Type | GYTS53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter | Nominal Weight |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term | |||
| 4 | 9.5 | 80 | 4 | 1 | 3000 | 1000 | 3000 | 1000 |
| 12 | 9.5 | 80 | 6 | 2 | 3000 | 1000 | 3000 | 1000 |
| 24 | 9.5 | 80 | 6 | 4 | 3000 | 1000 | 3000 | 1000 |
| 96 | 14.6 | 220 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 288 | 21.6 | 310 | 12 | 24 | 3000 | 1000 | 3000 | 1000 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

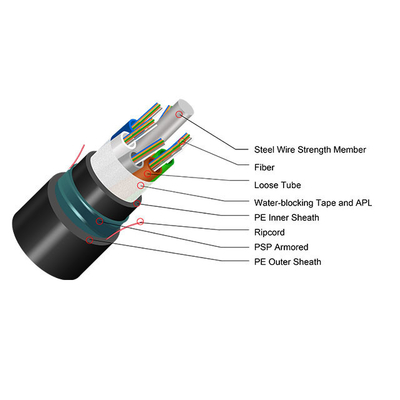

Structure and Product Pictures
