GYXTW Outdoor Fiber Optic Cable For Local Area Network System SM PE Outer Sheath
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Sheath Material | PE | Cable Outer Dame | 8.9-10.2mm |
|---|---|---|---|
| Min.Bending Radius | Ten To Twenty Times In Diameter | Cable Weight | 90-110 Kg/Km |
| Highlight | GYXTW Outdoor Fiber Optic Cable, PE Sheath Outdoor Fiber Optic Cable, PE Sheath Gyxtw Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | gyxtw outdoor fiber optic cable,gyxtw fiber optic cable outdoor |
||
Product Description
Outdoor Optic Fiber Cable GYXTW manufacturers the floor price give to you delivery fast
Outdoor Optic Fiber Cable GYXTW
Product Description of Optical Fiber
For ducts & aerial fiber optic cable.
Long distance communication system.
Local area network system.
Subsriber network

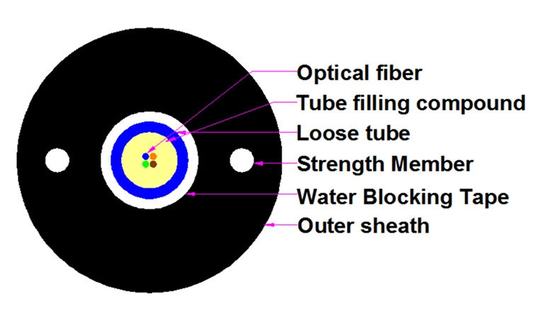

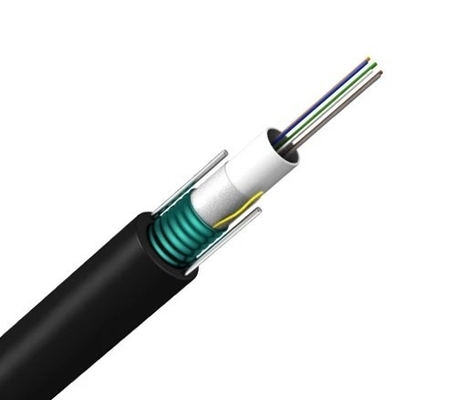

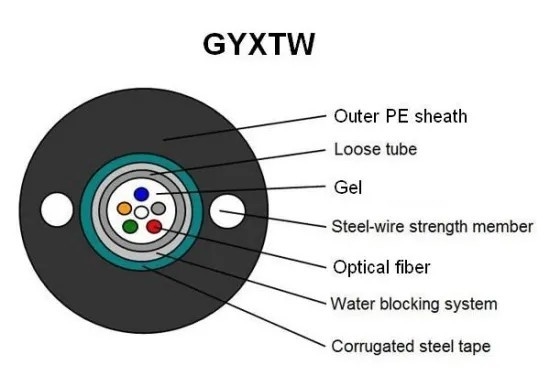

Optical Fiber GYXTW
Single jelly compound filled loose tube containing up to 24 fibers
Waterproof tape between the steel tape and loose tube with jelly compound.
Duble-sided PE corrugated steel tape armored.
Parallel double steel wire as strength member.
Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.
Fiber Optic Cable data
| Fiber Optic Cable Technical data: | ||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-12 | 8.9 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 14-24 | 10.2 | 110 | ||||||
