MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord 3M Multimode Connector
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | OM3 Fiber Optic Patch Cord | Polish | PC,UPC,APC |
|---|---|---|---|
| Fiber Type | OM3 | Cord Type | Duplex |
| Cable Jacket | OFNR | Core | 24 Core |
| Color | Yellow | Wavelength | 1310nm/1550nm |
| Operating Temperature | -40 To 85℃ | Insertion Loss | ≤0.25dB(1310nm&1550nm) |
| Highlight | MPO OM3 Fiber Optic Patch Cord, MPO-LC Fiber Optic Patch Cord, 3M Fiber Optic Patch Cord | ||
| Highlight | OM3 Fiber Optic Patch Cord,MPO Fiber Optic Patch Cord,MPO OM3 Cable 24 Core |
||
Product Description

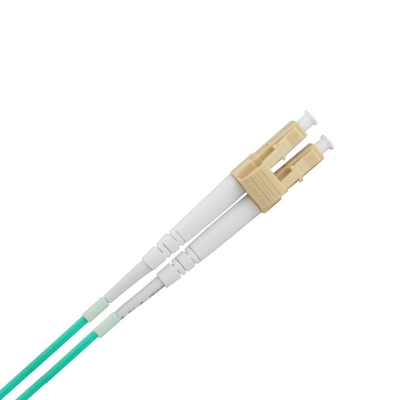

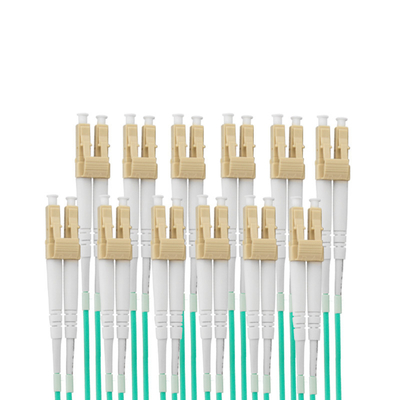

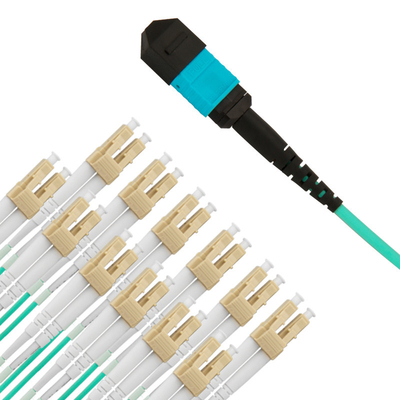

1 Piece MPO-LC 24 Core MPO OM3 Fiber Optic Patch Cord Cables 3M Multimode Connector High Band Width
MPO OM3 MULTIMODE CONNECTOR
• MPO OM3 MULTIMODE CONNECTOR With this MPO fiber cable, you are ready for deployment in any multimode 10 GB 50/125 MTP/MPO network.
• 10 GB OM3 fiber optic patch cables feature an extremely high bandwidth--almost 3x that of a typical multimode cable.
• The push-on connectors hold the cable securely in place.
• This multimode, MTP/MPO fiber cable is comprised of 24 fibers or 12 duplex channels within each connector.
• These high density cables are perfect when you have limited space and but still want that great fiber connection.
| Length | 3m | Vibration (dB) | ≤ 0.1 (5 to 50Hz, 1.5mm) |
| Connectors | MPO to LC | Tensile strength | ≥200N |
| Core | Multi Mode Fiber | The high temperature | ≤ 0.2dB (+85 ° C for 50 hours) |
| Density | Duplex | Low temperature | ≤ 0.2dB (-40 ° C for 50 hours) |
| Finish | PC Polish | Temperature cycling | ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles) |
| Interchangeability (dB) | ≤ 0.1 | Humidity | ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%) |
Features
• Ceramic Ferrule;
• High return loss;
• Low insertion loss;
• Good repeat-ability and and ex-changeability;
• Excellent Polished and 100% tested;
• Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Application
• Local Area Network (LAN)
• Data communication network
• Telecommunication optical transmission network
• Optical access network(OAN)
• Active device termination
• Fiber optics data transmission(FODT)
• Test Equipment
How To Choose The Right Fiber Optic Cable Type?
(The difference of OM4 and OM3 fiber mode as the following)
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
|
Designation
|
Fiber Dia.(μm)
|
Type
|
Fast Ethernet 100BASE-FX
|
1 Gigabit Ethernet 1000BASE-SX
|
1 Gigabit Ethernet 1000BASE-LX
|
10Gbps Ethernet 10GBASE
|
40Gbps Ethernet 40GBASE SR4
|
100Gbps Ethernet 100GBASE SR4
|
|
OM1
|
62.5/125
|
Multimode
|
2000M
|
275M
|
550M
|
33M
|
Not supported
|
Not supported
|
|
OM2
|
50/125
|
Multimode
|
2000M
|
550M
|
550M
|
82M
|
Not supported
|
Not supported
|
|
OM3(Laser Optimized)
|
50/125
|
Multimode
|
2000M
|
550M
|
550M
|
300M
|
100M(SR4)
|
100M(SR4)
|
|
OM4(Laser Optimized)
|
50/125
|
Multimode
|
2000M
|
550M
|
550M
|
400M
|
150M(SR4)
|
150M(SR4)
|
|
Singlemode
|
9/125
|
Singlemode
|
2000M
|
5km at 1310nm
|
5km at 1310nm
|
10km at 1310nm
|
N/A
|
N/A
|
