2-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 2-24 Cores | Fiber Type | G652D |
|---|---|---|---|
| Structure | Loose Tube | Strength Member | Phosphating Steel Wire |
| Waterblocking Material | Water-blocking Tape | Jacket | PE Or LSZH Outer Sheath |
| Single Armour Material | Corrugate Steel Tape | Color | Black |
| Installation | Aerial & Duct | Operating Temperature | -40 Degree ~ +85 Degree |
| Highlight | G652D Armoured Outdoor Fiber Optic Cable, GYXTW Armoured Outdoor Fiber Optic Cable, Un I- Tube Outdoor Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | g652d sm optical fiber,g652d outdoor fiber optic cable,gyxtw sm optical fiber |
||
Product Description

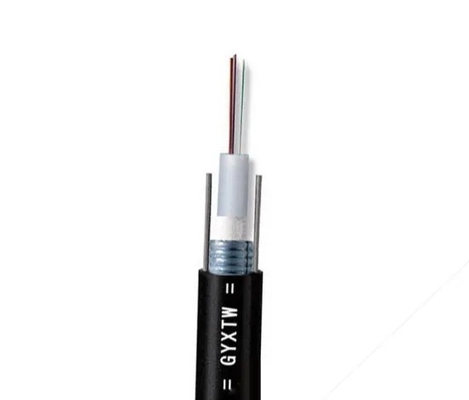

2-24 Core G652D GYXTW Uni-Tube Armoured Outdoor Fiber Optic Cable Communication Cable SM Optical Fiber
Constructure

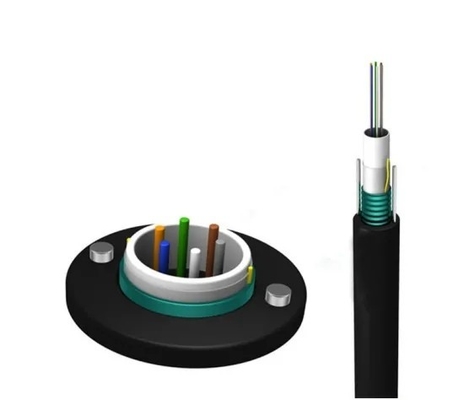

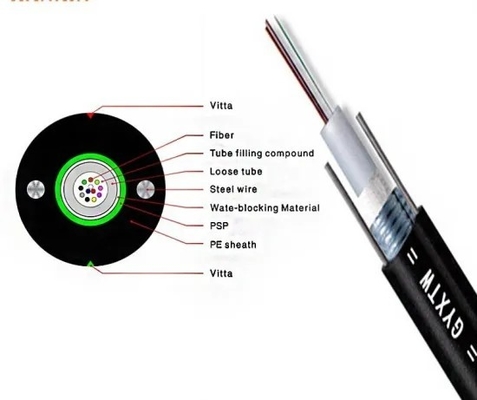

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Feature:
1. Double wire as strain member provides excellent strain performance
2. Excellent mechanical performance
3. Easy to installation and operation
4. Small outer diameter, lightweight, tight structure, excellent bending property
5. Good water-resistant properties
Specification
Optical Charateristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
| 14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
Application
Aerial & Duct
