GYXTW Central Loose Tube Fiber Optic Cable High Strength Hydrolysis Resistant with PE outer sheath
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Single Armour Material | Corrugated Aluminium Tape | Outer Sheath Material | MDPE / HDPE |
|---|---|---|---|
| Outer Sheath Color | Black | Loose Tube Material | PBT Or Jelly |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Installation Methods | Duct & Burial |
| Operating Temperature | -40 Degree ~ +60 Degree | Highlight | Central Loose Tube Fiber Optic Cable, Hydrolysis Resistant Fiber Optic Cable, Hydrolysis Resistant Central Loose Tube CableCentral Loose Tube Fiber Optic Cable, Hydrolysis Resistant Fiber Optic Cable, Hydrolysis Resistant Central Loose Tube Cable |
| Name | Outdoor Optical Cable | ||
| Highlight | gyxtw fiber optic cable loose tube,gyxtw loose tube fiber optic cable |
||
Product Description
Telcom Fiber Optic Cable Sm 2-12 F Unitube Outdoor Use
Optic Cable Technical data |
||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-12 | 8.9 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 14-24 | 10.2 | 110 | ||||||

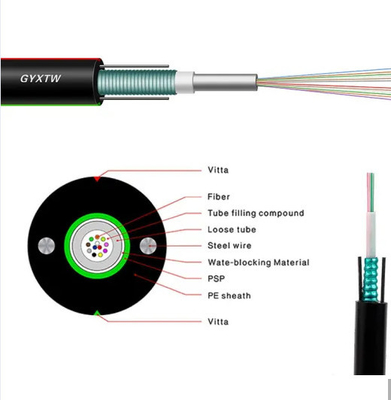

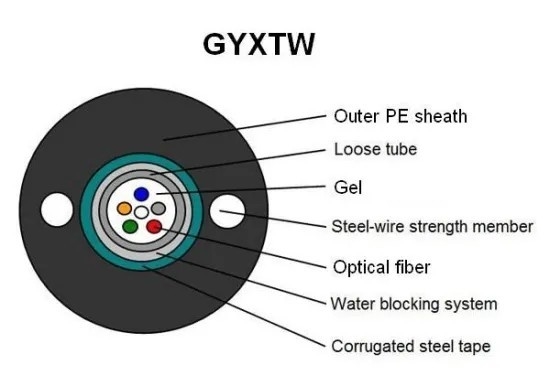

| ·Description The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath. |
||||||||||||||||||||||||||||||||||||||||||||||||||
| ·Characteristics · Good mechanical and temperature performance · High strength loose tube that is hydrolysis resistant · Special tube filling compound ensure a critical protection of fiber · Crush resistance and flexibility · PSP enhancing moisture-proof · Two parallel steel wires ensure tensile strength · Small diameter, light weight and friendly installation · Long delivery length ·Standards GYXTW cable complies with Standard YD/T 769-2003. ·Optical Characteristics |
||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| ·Technical Parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage/Operating Temperature : -40ºC to + 70ºC | ||||||||||||||||||||||||||||||||||||||||||||||||||
