2-12 Cores Uni-Loose Tube Parllel Wires Optical Cable Cst Fiber Optic
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Fiber Type | G657A1 Or A2, G652D |
|---|---|---|---|
| Sheath Material | Black Polyethylene (PE) | Highlight | Cst Fiber Optic Optical Cable, Parllel Wires Optical Cable, Cst Fiber Optic Cable |
| Central Strengthen Member | FRP | Fiber Core | 2-288 Cores |
| Type | ADSS Optical Fiber Cable | Name | Outdoor Optical Cable |
| Highlight | loose tube fiber optic cable outdoor,loose tube outdoor fiber optic cable,g652d fiber optic cable outdoor |
||
Product Description
PRODUCT DESCRIPTION

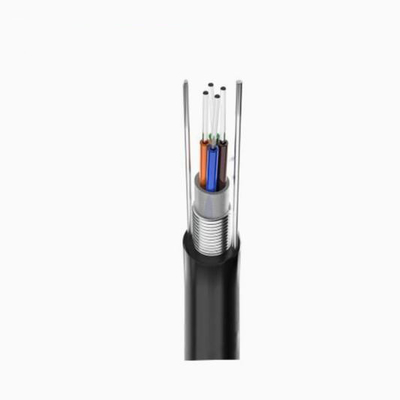

2-12 Cores Uni-Loose Tube Parllel Wires Optical Cable Cst Fiber Optic
Structure characters
Loose tube with non-metallic strengthen member.High flexible amaid yarn.Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.
Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date:(for 24 core fiber, 800m span)
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
Our Quality & Service
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certification
REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate
