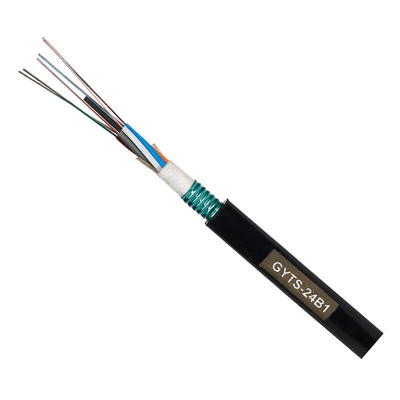

GYTS Steel Tape Armored 24 Cores Outdoor Fiber Optic Cable With Black HDPE Sheath
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTS |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Fiber Type | G657A1 Or A2, G652D |
|---|---|---|---|
| Strength Member | Steel Wire Or FRP | Sheath Material | PE |
| Highlight | Armored 24 Cores Outdoor Fiber Optic Cable, HDPE Sheath Outdoor Fiber Optic Cable, Steel Tape Armored Outdoor Fiber Optic Cable | Loose Tube Material | PBT Or Jelly |
| Fiber Core | 2-288 Core Loose Tube Optic Fiber Cable | Name | Outdoor Optical Cable |
| Highlight | gyts fiber optic cable outdoor,gyts outdoor fiber optic cable,armored fiber optic cable outdoor |
||
Product Description
Steel Tape Armored 24 Cores Outdoor Fiber Optical Cable
With Black HDPE Sheath GYTS
This is GYTS Outdoor Aerial and Duct,24 Cores Fiber Optic Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.
GYTS Outdoor Aerial and Duct 24 Cores Fiber Optic Cable are designed for easy and economical installation.

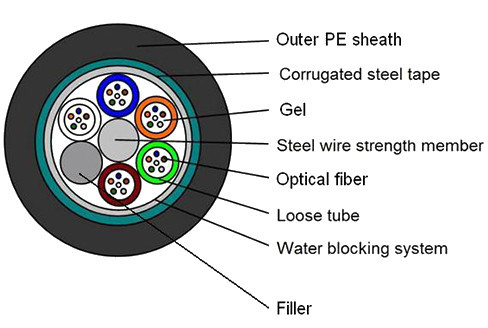

Cable Description from inside to outside
1. fiber
2. Steel-wire strengthen member
3. loose tube
4. filling compound
5. corrugated steel tape
6. out sheath
Application
1. Outdoor aerial or duct distribution.
2. Long distance and local area network communication.
Characteristics
1. Steel tape strengthen.
2. Filler protect tube fiber steel tape amored.
3. Excellent mechanical and environmental performance.
4. Compact structure.light weight.
5. Convenient installation and simple operation.
6. Good water-blocking system.
7. HDPE sheath.
Cable construction details
| Item | Description | |
| Model No | GYTS | |
| 1. Fiber count | 12 | 24 |
| 2. Cable Diameter(MM) | 8.8±0.2 | |
| 3. Cable Weight(KG) | 85 | |
| 4. Central Strength member | ||
| -Material | Steel wire | |
| -Diameter | 1.4mm | |
| -PE sheath | No | |
| 5. Loose Tube | ||
| -Material | PBT | |
| -Outer diameter | 1.6 mm | |
| -Thickness | 0.3 mm | |
| -Type of filling compound | Jelly | |
| -No. of loose tube | 2 | 4 |
| 6. Filler | ||
| -Material | PP | |
| -Outer diameter | 1.6 mm | |
| -No. of fillers | 3 | 1 |
| 7. Tube Assembly | ||
| -Tube Layout | 1+5 | |
| -Stranding type | SZ | |
| 8. Water-blocking system | ||
| -Material | Filling compound | |
| 9. Core wrap | ||
| -Material | polyester tape | |
| 10. Armour | ||
| -Material | Steel tape | |
| -Thickness | 0.22mm | |
| -Coating material | Plastic | |
| -Coating thickness | 0.1mm | |
| 11. Outer Sheath | ||
| -Material | PE | |
| -Thickness | 1.6mm±0.2mm | |
| 12. Sheath marking | ||
| -Type of marking | Laser printing | |
Standard color of fiber and tube
| Fiber style | Unit | SM G652 |
SM G652D |
MM 50/125 |
MM 62.5/125 |
MM OM3-300 |
|
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | |||
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | ||
| Bandwith | 850nm | MHZ.KM | ---- | ---- | >=400 | >=160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | >=800 | >=500 | ||
| Zero dispersion wavelength | nm | 1300-1324 | >=1302, ≤1322 |
---- | ---- | >= 1295, ≤1320 |
|
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | |
| PMD Maximum Individual Fibr | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | ||
| PMD Design Link Value | Ps(nm2*k m) |
≤0.12 | ≤0.08 | ---- | ---- | ---- | |
| Fibre cutoff wavelength λc | nm | >= 1180, ≤1330 |
>=1180, ≤1330 |
---- | ---- | ---- | |
| Cable sutoff wavelength λcc |
nm | ≤1260 | ≤1260 | ---- | ---- | ---- | |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | |
| Numerical Aperture(NA) |
---- | ---- | 0.200+/ -0.015 |
0.275+/-0. 015 |
0.200+/-0 .015 |
||
| Step(mean of bidirectional measurement) |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Irregularities over fiber length and point |
dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | |
| Dicontinuity | |||||||
| Difference backscatter coefficient |
dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ||||
| Core dimater | um | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | |||
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | |
| Coating/chaffinch concentrically error |
um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- | |
Our advantages
- High- integrity enterprise ( 90% regular customers).
- Hight quality with competitive price (A professional manufacturer).
- Shortest delivery time
- QC: ISO 9002, ROHS, UL, REACH.
- MOQ is 1KM.
- Exclusive testing laboratory
- Free samples provided.
- Customized.
