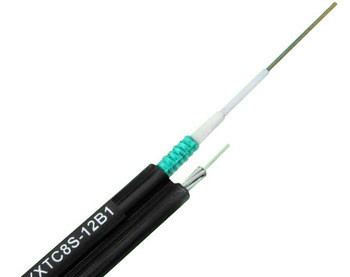

Loose Tube Stranded GYXTC8S 2 Core Outdoor Cable Aerial Telecommunication
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Outdoor Optic Fiber Cable | Application | Aerial |
|---|---|---|---|
| Fiber Type | G652D | Fiber Count | 2-24 Cores |
| Installation | Self- Supporting Aerial | Jacket Material | PE |
| Highlight | GYXTC8S 2 Core Outdoor Cable, Loose Tube 2 Core Outdoor Cable, GYXTC8S 2 Core Outdoor Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | gyxtc8s fiber optic cable outdoor,gyxtc8s outdoor fiber optic cable,loose tube fiber optic cable outdoor |
||
Product Description
Loose Tube Stranded GYXTC8S Outdoor Fiber Optic Cable Aerial Telecommunication Optical Cable
Description:
GYXTC8S is an outdoor communication figure 8 aerial-self supporting optical cable of metallic strength member of the central tube jelly-filled structure, with steel-polyethylene laminated sheath.
The metal strength member is made up of stranded wires, the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.

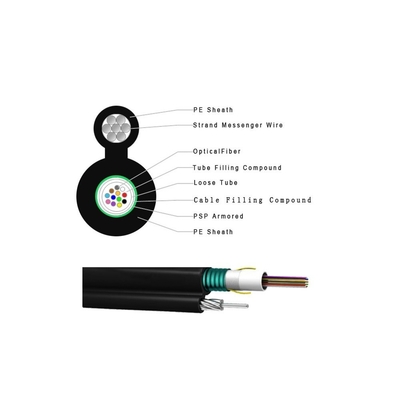

Structure:
- Self-supporting 7 steel wire strand,structure of figure 8
- Central Loose tube, special gel in the tube
- Corrugate steel tape armored
- PE outer sheath
Feature:
- Loose tube gel-filled construction for superior fiber protection.
- CST armor to protect cable from rodent attack and mechanical damage.
- UV and moisture-resistant design
Specification:
|
Technical Parameters
|
||||||||
|
Cable Type
|
Fiber Count
|
Cable Diameter (mm)
|
Cable Weight (kg/km)
|
supporting wire Spec.
|
connection diameter
|
Tensile Strength
Long/Short Term(N) |
Crush Resistance
Long/Short Term (N/100mm) |
Bending Radius
Static/Dynamic (mm) |
|
GYXTC8S
|
2~12
|
7.65*14.5
|
118
|
φ1.0mm*7 stranded wire
|
H*W 3.0*2.5 mm
|
1000/2500
|
300/1000
|
80D/160D
|
|
GYXTC8S
|
14-24
|
8.2*15.4
|
129
|
φ1.0mm*7 stranded wire
|
H*W 3.0*2.5 mm
|
600/1500
|
300/1000
|
80D/160D
|
|
Storage/Operating Temperature : -40℃ to + 70℃
|
||||||||
|
|
|||||
|
Optical Characteristics
|
|||||
|
|
G.652
|
G.655
|
50/125μm
|
62.5/125μm
|
|
|
Attenuation
(+20℃) |
'@850nm
|
|
|
≤3.0 dB/km
|
≤3.0 dB/km
|
|
'@1300nm
|
|
|
≤1.0 dB/km
|
≤1.0 dB/km
|
|
|
'@1310nm
|
≤0.36 dB/km
|
≤0.40 dB/km
|
|
|
|
|
'@1550nm
|
≤0.22 dB/km
|
≤0.23 dB/km
|
|
|
|
|
Bandwidth
(Class A) |
'@850nm
|
|
|
≥500 MHz·km
|
≥200 MHz·km
|
|
'@1300nm
|
|
|
≥1000 MHz·km
|
≥600 MHz·km
|
|
|
Numerical Aperture
|
|
|
0.200±0.015NA
|
0.275±0.015NA
|
|
|
Cable Cut-off Wavelength λcc
|
≤1260nm
|
≤1480nm
|
|
|
|
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
Application:
- Inter-building voice or data communication backbones.
- Duct and Self-Supporting aerial
