Glass Yarn Armored Fiber Cable GYFTY-FS Fiber Optic Ethernet Cable PE Sheath
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Fiber Optic Ethernet Cable | Waterblocking Material | Water Blocking Tape Or Filling Compound |
|---|---|---|---|
| Fiber Type | G657A1 Or A2, G652D | Strength Member | RFP |
| Sheath Material | PE | Highlight | GYFTY-FS Fiber Optics Ethernet Cable, Glass Yarn Fiber Optics Ethernet Cable, Armored Fiber Optics Ethernet Cable |
| Loose Tube Material | PBT Or Jelly | ||
| Highlight | Glass Yarn Armored Fiber Cable,Armored Fiber Cable GYFTY-FS,Fiber Optic Ethernet Cable |
||
Product Description
Product Description

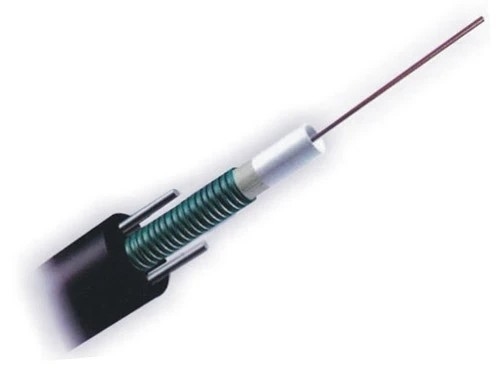

Overhead Cable Glass Yarn Armored Fiber Optic Cable (GYFTY-FS)
GYFTY Optic Fiber Cable Structure characters:
Non-metallic strengthen member
Reinforced with glass or aramid yarn
PE outer sheath
GYFTY Optic Fiber Cable Properties:
Non-metallic structure providing excellent anti-electromagnetism
Anti-thunder and anti-static performances.
GYFTY Optic Fiber Cable Applicable Fields:
1. Long distance telecom, LAN in high voltage area or access to telecom network;
2. For power transmission system, much thunder areas and high electro-magnetic inerference.
GYFTY Optic Fiber Cable Technical data:
Technical data: |
||||||||
| Fiber Num. | Outer diameter (mm) | Weight (kg/km) | Min.Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-36 | 10.4 | 90 | 10 times O.D. | 20 times O.D. | 1500 | 600 | 1000 | 300 |
| 38-60 | 10.2 | 110 | ||||||
| 62-72 | 11.7 | 115 | ||||||
| 74-96 | 13.4 | 150 | ||||||
| 98-120 | 15.0 | 190 | ||||||
| 122-144 | 16.6 | 230 | ||||||
| 146-216 | 16.9 | 240 | ||||||
| 218-240 | 19.3 | 305 | ||||||
| 242-288 | 21.5 | 375 | ||||||
GYFTY Optic Fiber Cable Packaging Detail:
GYFTY Optic Fiber Cable package are wooden drum, 3-4KM per drum. We also accept custom cabledrum from customers.
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this GYFTY FRP 6/8/12/24/36/48/60/72/96/144 Core Optic Fiber Cable.
