GYXTW Central Loose Tube Cable 2-24 Core Duct Fiber Optic Cable YD/T 769-2010
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication ,CATV, Net Work | Fiber Count | 2-24 Core |
|---|---|---|---|
| Fiber Type | G652D,single Mode Or Multi Mode,50/125,62.5/125,OM3 | Jacket | PE,MDPE |
| Oem | Available | Installation | Aerial,Aerial & Duct,aerial/tube/duct |
| Structure | Loose Tube | Strength Member | Two Steel Wire |
| Highlight | GYXTW Duct Fiber Optic Cable, YD/T 769-2010 Duct Fiber Optic Cable, GYXTW Optical Fiber Duct Cable | Name | Outdoor Optical Cable |
| Highlight | GYXTW Central Loose Tube Cable,24 Core Duct Fiber Optic Cable,Central Tube Fiber Optic Cable 2 Core |
||
Product Description

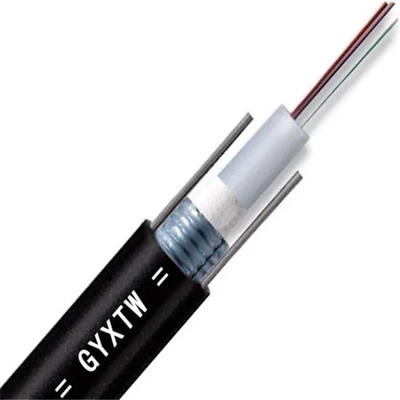

GYXTW Central Tube Type Optic Cable Manufacturer
Description:
1. Single jelly compound filled loose tube containing up to 24 fibers
2. Waterproof tape between the steel tape and loose tube with jelly compound.
3. Double coated PE corrugated steel tape under PE sheath.
4. Parallel double steel wire as strength member.
5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.
General Specifications:
| Cable Type | Central Loose Tube fiber optic cable GYXTW |
| Fiber Type | SM G.652D |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40ºC to 70ºC |
Fiber Specifications:
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber | |||
| Characteristics | Conditions | Specified Values | Units |
| Optical Characteristics | |||
| Mode field diameter (MFD) | 1310nm 1550nm |
9.2±0.4 10.4±0.8 |
µm µm |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Attenuation coefficient | 1310nm 1383nm 1550nm |
<0.35 <0.35 <0.22 |
dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | ≤0.05 | dB | |
| Dispersion coefficient | 1288~1339nm 1271~1360nm 1550nm |
≤3.5 ≤5.3 ≤18 |
Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 | nm | |
| Max zero dispersion slope | ≤0.093 | Ps/(nm2.km) | |
| Group index of refraction (typical value) | 1310nm 1550nm |
1.466 1.467 |
|
| Geometric characteristic | |||
| Cladding diameter | 125.0±1.0 | µm | |
| Core/cladding concentricity error | ≤0.8 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10 | µm | |
| Cladding/coating concentricity error | ≤12.0 | µm | |
| Coating non-circularity | ≤8 | % | |
| Diameter of colored coating | 250.0±15 | µm | |
| Mechanical characteristic | |||
| Curling (radius) | ≥4 | m | |
| Proof stress | >0.69 | Gpa | |
| Coating strip force | Average value Peak value |
1.0-5.0 1.3-8.9 |
N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | ≥20 | ||
Packing view : 1-4km/roll in wooden drum

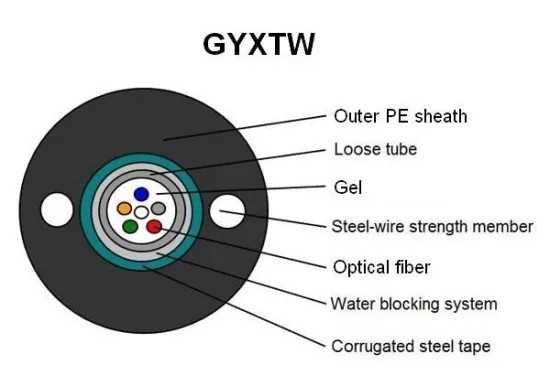

Cable structure:
