Aerial GYTC8S Loose Tube Fiber Cable 6 Core Single Mode Armoured Fiber Optic Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |

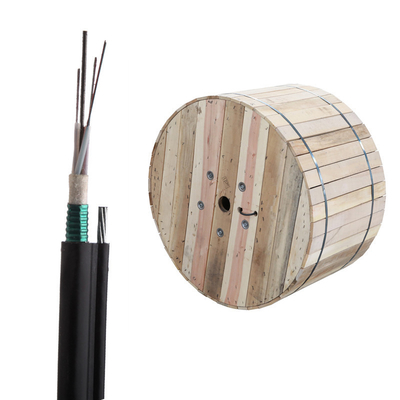

| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Figure 8 Self-support Fiber Cable | Messenger | Steel Wire |
|---|---|---|---|
| Messenger Diameter | 5.0mm | Outersheath Material | PE |
| Standard | YD/T 1155-2011 | Fiber Count | 2-144 Core |
| Highlight | GYTC8S Armoured Fiber Optic Cable, 6 Core Armoured Fiber Optic Cable, Single Mode Armoured Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | Loose Tube Fiber Cable 6 Core,6 Core Single Mode Fiber Optic Cable,6 Core Single Mode Armoured Fiber Optic Cable |
||
Product Description

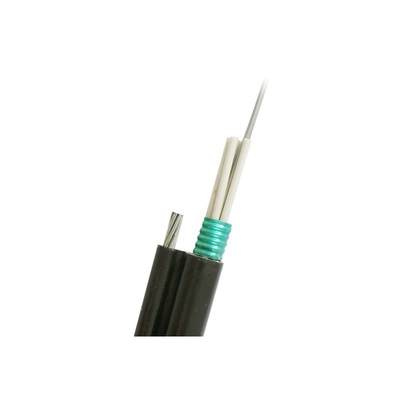

Outdoor Aerial Figure-8 Fiber Optic Cable Singlemode 2-144 core GYTC8S Loose Tube Optical Communication Cable
Description:
Loose tube style, a figure-8 optical fiber cable with metallic central strength member of steel wire/strand and moisture barrier inner sheath incorporating steel messenger wire suitable for overhead installation as pole-to-pole or pole-topremises.Tubes contain optical single-mode or multimode fibers color coded as per the color coding scheme.
Feature:
1.G652D fiber information after cabled
2. Mode field diameter (1310nm): 9.2m0.4m
3. Mode field diameter (1550nm): 10.4m0.8m
4. Cut off wavelength of cabled fiber (cc): 1260nm
5. Attenuation at 1310nm: 0.36dB/km
6. Attenuation at 1550nm: 0.22dB/km
7. Bending loss at 1550nm (100 turns, 30mm radius): 0.05dB
8. Dispersion in the range 1288 to 1339nm: 3.5ps/ (nm•km)
9. Dispersion at 1550nm: 18ps/ (nm•km)
10. Dispersion slope at zero dispersion wavelength: 0.092ps/
(nm2•km)
Dimensional Characteristics:
| Designation | Max. number | Steel wire/ stand | Stranded | Nominal cable | Nominal cable |
| Of fibers per tube | Diameter (mm) | units | diameter (mm) | weight (kg/km) | |
| GYTC8S 2-36 | 6 | 2.3 | 6 | 11.6X25.5 | 270 |
| GYTC8S 38-72 | 12 | 2.3 | 6 | 13.2X28.5 | 310 |
| GYTC8S 74-96 | 12 | 2.3 | 8 | 14.9X33.0 | 390 |
| GYTC8S 98-120 | 12 | 2.3 | 10 | 16.8X33.0 | 390 |
| GYTC8S 122-144 | 12 | 2.3 | 12 | 18.8X35.0 | 440 |
Mechanical & Environmental Characteristics:
| Item | Characteristics | ||
| GYTC8S 2-72 | GYTC8S 74-96 | GYTC8S 98-144 | |
| Tensile Strength | 9000N | 10000N | 12000N |
| Crush Resistance | 1000/100mm | ||
| During Installation | 20 Times Cable Diameter | ||
| After Installation | 10 Times Cable Diameter | ||
| Messenger wire | Diameter: 1.2mmx7 steel wire strand | ||
| Storage(°c) | -50 to+70 | ||
| Operating(°c) | -40 to+60 | ||
Fiber G652D
| Category | Description | Specifications | ||
| Before cabling | After cabling |
|||
| Optical Specifications | Attenuation @1310 nm | ≤0.34 dB/km (max.) | ≤0.36 dB/km (max.) | |
| Attenuation @1550 nm | ≤0.20 dB/km (max.) | ≤0.22 dB/km (max.) | ||
| Attenuation @1625 nm | ≤0.23dB/km | ≤ 0.25 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324 nm | |||
| Zero Dispersion Slope | ≤ 0.090 ps/nm2·km | |||
| PMD Link value (M=20cables Q=0.01% ) maximum PMDQ |
0.2 ps/√km | |||
| Cable Cutoff Wavelength (λcc) | ≤1260 nm | |||
| Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm |
≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB |
|||
| Mode Field Diameter | @1310 nm | 9.2±0.4μm | ||
| @1550 nm | 10.4±0.5μm | |||
| Dimensional Specifications |
Cladding Diameter | 125 ±0.7μm | ||
| Core/clad concentricity error | ≤0.5μm | |||
| Cladding Non-Circularity | ≤1.0% | |||
| Mechanical Specifications |
Proof stress | ≥0.69Gpa | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
for more detailed information.
Application:
- Aerial
- Long distance communication and LAN
- Indoor shaft, building wire
