Aerial GYFXTY Non Metallic Fiber Optic Cable 4 Core PE Jacket G652D Fiber Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No | GYFXTY | Outer Sheath Material | PE |
|---|---|---|---|
| Strength Member | 2 FRP | Fiber Count | 2-288 Cores |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Loose Tube Material | PBT With Jerry |
| Highlight | GYFXTY Outdoor Fiber Optic Cable, G652D Fiber Outdoor Fiber Optic Cable, GYFXTY 4 Core Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | GYFXTY Non Metallic Fiber Optic Cable,Non Metallic Fiber Optic Cable 4 Core,G652D Fiber Cable |
||
Product Description

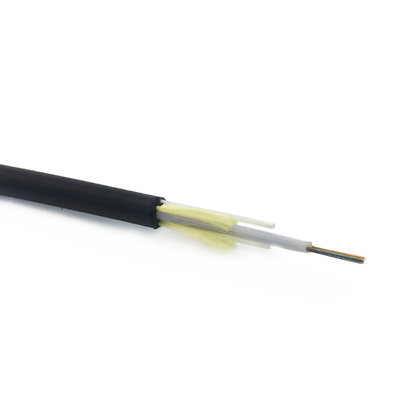

4 Cores Aerial GYFXTY Outdoor Non-Metallic Fiber Optic Cable PE Jacket With G652D Fiber
Outdoor Aerial 4 Cores GYFXTY PE Jacket FRP Messenger Wire Optical Fiber with G652D Fiber
GYXFTY single mode fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member. the cable is completed with a PE sheath. GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application
Product functions and features

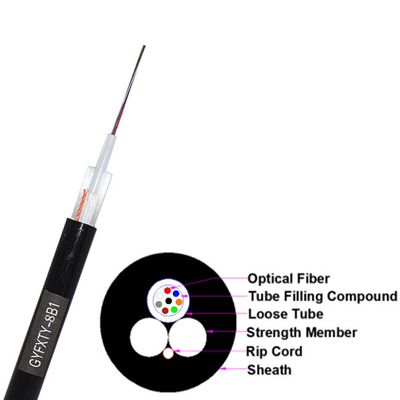

The structure of GYFXTY central beam tube optical cable is to insert 250um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube is wrapped with a layer of aramid yarn(Made In China) longitudinally, and water blocking material is added between the aramid yarn and the loose tube to ensure the compactness of the optical cable and the longitudinal water blocking. Two parallel steel FRP are placed on both sides and the polyethylene sheath is extruded Into a cable.
Specifications
|
Brand
|
TW-SCIE
|
|
Optical Fiber Type
|
Singel Mode G652D
|
|
Jacket Material
|
PE
|
|
Fiber Count
|
4
|
|
Jacket Color
|
Black
|
|
Strength Member
|
2 Parallel FRP
|
|
Cable Diameter
|
6.0mm
|
|
Length
|
2000m per roll or customized
|
|
Gross Weight
|
35 kgs
|
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber | |||
| Optical Characteristics | |||
| Mode field diameter (MFD) | 1310nm 1550nm |
9.2±0.4 10.4±0.8 |
µm µm |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Attenuation coefficient | 1310nm 1383nm 1550nm |
<0.35 <0.35 <0.22 |
dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | ≤0.05 | dB | |
| Dispersion coefficient | 1288~1339nm 1271~1360nm 1550nm |
≤3.5 ≤5.3 ≤18 |
Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 | nm | |
| Max zero dispersion slope | ≤0.093 | Ps/(nm2.km) | |
| Group index of refraction (typical value) | 1310nm 1550nm |
1.466 1.467 |
|
| Geometric characteristic | |||
| Cladding diameter | 125.0±1.0 | µm | |
| Core/cladding concentricity error | ≤0.8 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10 | µm | |
| Cladding/coating concentricity error | ≤12.0 | µm | |
| Coating non-circularity | ≤8 | % | |
| Diameter of colored coating | 250.0±15 | µm | |
| Mechanical characteristic | |||
| Curling (radius) | ≥4 | m | |
| Proof stress | >0.69 | Gpa | |
| Coating strip force | Average value Peak value |
1.0-5.0 1.3-8.9 |
N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | ≥20 | ||
