Stranded Loose Tube GYFTY53 Single Mode Water-Blocking Armored Fiber Cable Commpetitive Price
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |

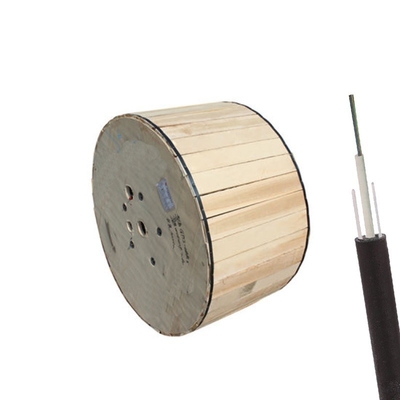

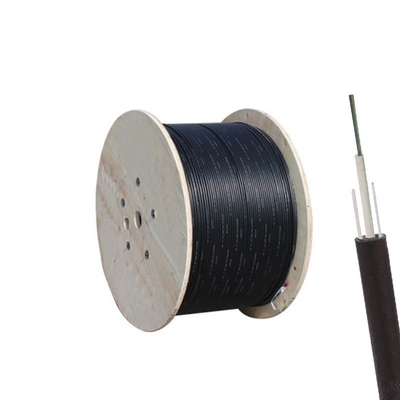

| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Aerial, Duct,Multi-cores Wiring System In Data Center | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Fiber Count | 2-288 Fibers | Central Strength Member | FRP |
| Armor | Corrugated Steel Tape | Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) |
| Highlight | GYFTY53 Single Mode Armored Fiber Optic Cable, G652D Single Mode Armored Fiber Optic Cable, GYFTY53 Single Mode Armored Fiber Cable | Name | Outdoor Optical Cable |
| Highlight | loose tube armored fiber cable,loose tube armored outdoor fiber optic cable,g652d armored fiber cable |
||
Product Description
GYFTY53 Aerial/Duct Stranded Loose Tube Armored Outdoor Fiber Optic Cable
GYFTY53 optic fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
Features
- Good mechanical and temperature perfomance;
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
---FRP used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
---Water-blocking material
Applications
- Aerial / Duct
- Connecting communication equipments
- Multi-cores wiring system in data center
Specifications
| Cable Type | GYTY53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 12.2 | 142 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 12.8 | 155 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
| 50~72 | 13.6 | 170 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 15.0 | 192 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 98~144 | 16.6 | 220 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
| >144 | Available upon customer’s request | |||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

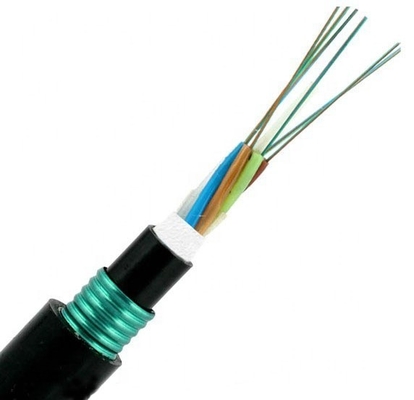

Structure and Product Pictures
