GYTS53 Direct Buried Fiber Optic Cable Outdoor Stranded Loose Tube Double Steel Armored Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTS53 |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Direct Buried Fiber Optic Cable | Application | Telecommunication, Aerial, Duct, Telecom, Network |
|---|---|---|---|
| Fiber Type | G652D, G657A1, G657A2 | Highlight | GYTS53 Outdoor Optical Fiber Cable, GYTS53 Armored Optical Fiber Cable, GYTS53 Loose Tube Fiber Optic Cable |
| Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) | Fiber Count | 2-288 Fibers |
| Central Strength Member | Steel Wire | Armor | Corrugated Steel Tape |
| Highlight | GYTS53 Direct Buried Fiber Optic Cable,Direct Buried Fiber Cable Loose Tube,Direct Buried Fiber Optic Cable Outdoor |
||
Product Description
Product Description
Direct Buried Stranded Loose Tube Armored Cable, GYTS53 Outdoor Fiber Optic Cable
Description
The GYTS53 outdoor fiber optic cable has single-mode/multimode fibers in loose tubes filled with water blocking compound, which are then stranded around a strength member to form a circular cable core. A Plastic Steel Plastic (PSP) layer is applied over the core for protection, and the cable is completed with a thin inner PE sheath and an outer PE sheath.
Features
To ensure water blocking, the cable uses a single steel wire for strength, special water-blocking compound in the loose tube, and 100% APL and PSP moisture barrier.
Application
Fiber optic cables can be aerial, duct, or outdoor.
Specifications
| Cable Type | GYTS53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter | Nominal Weight |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term | |||
| 4 | 9.5 | 80 | 4 | 1 | 3000 | 1000 | 3000 | 1000 |
| 12 | 9.5 | 80 | 6 | 2 | 3000 | 1000 | 3000 | 1000 |
| 24 | 9.5 | 80 | 6 | 4 | 3000 | 1000 | 3000 | 1000 |
| 96 | 14.6 | 220 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 288 | 21.6 | 310 | 12 | 24 | 3000 | 1000 | 3000 | 1000 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

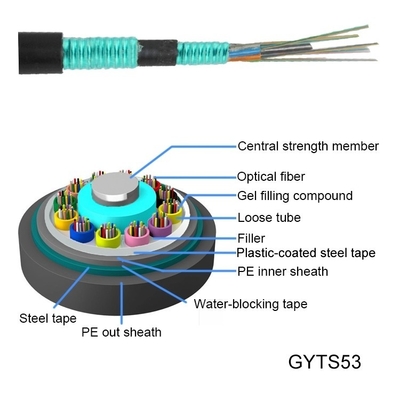

Structure and Product Pictures
Packing & Shipping
Cables are supplied in specified lengths and shipped on separate iron-wooden drums, with minimum barrel diameter not less than 30 times the cable diameter. Cable ends are sealed with plastic caps for water protection and easy accessibility for testing. The drum contains a final inspection report with attenuation data for each fiber.
