Loose Tube Non Metallic Armored Fiber Cable GYFTY Fiber Optic Cable 4 Core
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYFTY |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication, Aerial, Duct, Telecom, Network | Fiber Type | G652D, G657A1, G657A2 |
|---|---|---|---|
| Highlight | Outdoor Armored Fiber Optic Cable, Fiber Optic Network Cable | Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) |
| Central Strength Member | FRP | Name | Outdoor Optical Cable |
| Highlight | Non Metallic Armored Fiber Cable,GYFTY cable,GYFTY Fiber Optic Cable 4 Core |
||
Product Description
Product Description
4 Core Loose Tube Non - Metallic & Non - Armored Aerial/Duct GYFTY Outdoor Fiber Optic Cable
1. Description
The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
2. Application
- Aerial/Duct
- Connecting coomunication equipment
- Multcores system in data center
3. Features
- Loose tube gel-filled construction for superior fiber protection
- All Dielectric structure
- UV and moisture-resistant design
4. Specifications
| Fiber Type | G.652 | G.655 | 50/125 um | 62.5/125 um | |
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| (+20X) | 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
| 122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

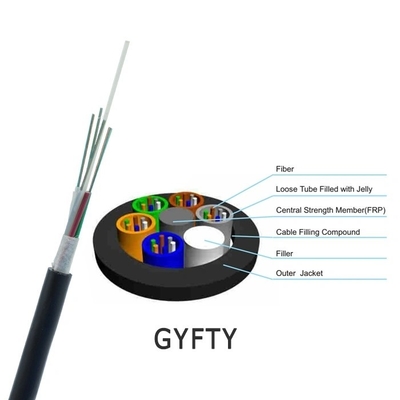

5.Structure and Product Pictures
6.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
