GYFXTY 12 Core Outdoor Fiber Optic Cable Central Loose Tube Non - Metallic & Non - Armored
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTC8S |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication, Aerial, Duct, Telecom, Network | Fiber Type | G652D,single Mode Or Multi Mode |
|---|---|---|---|
| Fiber Count | 12 Fibers | Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) |
| Highlight | 12 Core Outdoor Fiber Optic Cable, GYFXTY Outdoor Fiber Optic Cable, GYFXTY 12 Core Fiber Optic Cable | Product Name | Outdoor Optic Fiber Cable |
| Central Strength Member | FRP | Name | Outdoor Optical Cable |
| Highlight | 12 core outdoor fiber optic cable,armored fiber optic cable outdoor,armored outdoor fiber optic cable |
||
Product Description
Product Description
GYFXTY 12 Core Central Loose Tube Non - Metallic & Non - Armored Outdoor Fiber Optic Cable
1. Description
GYFXTY all-dielectric outdoor cables use central loose tube structure, which are filled with water-resistant filling compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastics (FRP) are placed at the two sides, which has an excellent anti-electromagnet ability and lightning resistance performance. The cable is completed with a single polyethylene (PE) sheath. It is especially suitable for installation in aerial for long-distance and bureau communication and wiring in multiple minefields and electromagnetic interfering places
2. Application
- Aerial
- Trunk power transmission system
- Access network and local network
- Electromagnetic interfering places
- Outdoor distribution, lightning protection
- Long-distance comunication and bureau communication
3. Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Two parallel FRPs ensure tensile strength
- PE sheath protects cable from ultraviolet radiation
- Small diameter, light weight and easy installation
4. Specifications
| Fiber Type | G.652 | 50/125 um | 62.5/125 um | |
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | |
| (+20X) | 1300 nm | <1.0 dB/km | <1.0 dB/km | |
| 1310 nm | <0.36 dB/km | |||
| 1550 nm | <0.22 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | |
| 1300 nm | >500 MHz-km | >500 Mhz-km | ||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | ||
| Cable Cut-off Wavelength cc | <1260 nm | |||
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
Bending Radius | |||
| Short Term | Long Term | Short Term | Long Term | Static | Dynamic | |||
| 2-12 | 8.2 | 65 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

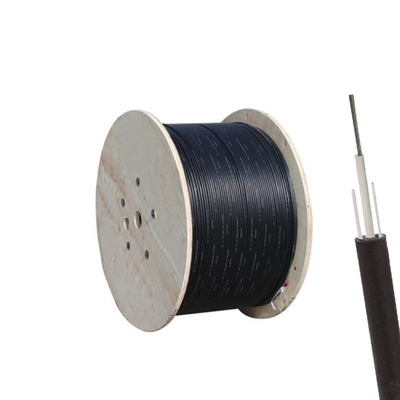

5.Structure and Product Pictures
6.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
