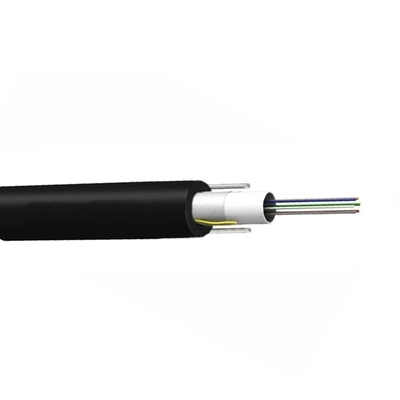

Telecommunication Round Wire Unitube Duct Fiber Optic Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Unitube Outdoor Fiber Optic Cable | Strength Member | Two Steel Wire |
|---|---|---|---|
| ShMaterialeath | PE | Highlight | TelecommunicationDuct Fiber Optic Cable, Unitube Duct Fiber Optic Cable, Telecommunication Fiber Cable Duct |
| Name | Outdoor Optical Cable | ||
| Highlight | OEM Outdoor Rated Fiber Optic Cable,MultiCore Exterior Fiber Optic Cable,G652D Outdoor Fiber Patch Cable |
||
Product Description
Gallery

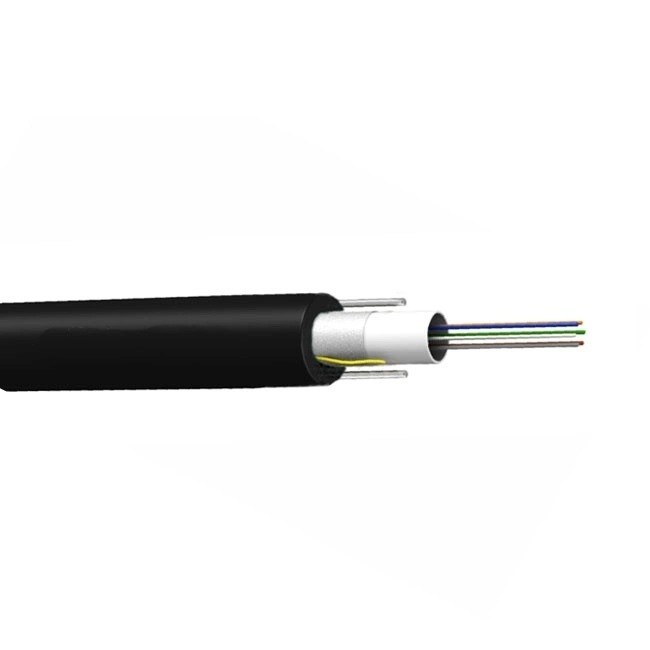

Telecommunication Round Wire Unitube Duct Fiber Optic Cable
Product Description
Telecommunication Outdoor Unitube Optical Fiber Cable Aerial / Duct Round Wire Fiber Optic Cable GYXY
Description:

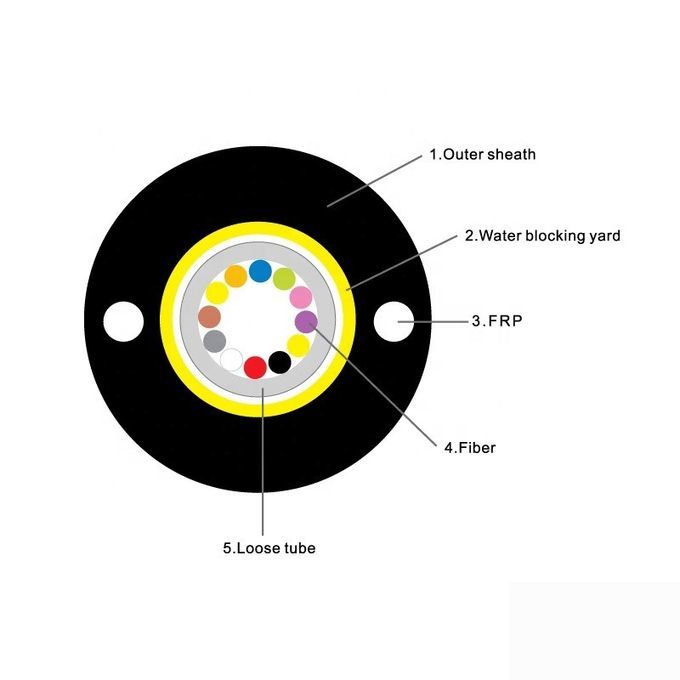

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel FRP are placed at the two sides. The cable is completed with a PE sheath.
Feature:
--- Good mechanical and temperature performance
--- High strength loose tube that is hydrolysis resistant
--- Special tube filling compound ensure a critical protection of fiber
--- Two parallel FRP ensure tensile strength
--- PE sheath protects cable from ultraviolet radiation
--- Small diameter, light weight and friendly installation
--- Long delivery length
Specification:
--- Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
--- Fiber : G652D
--- Installation : Suitable for aerial or duct
--- Application : Apply to Long distance communication system, Local area network system and Subscriber
network system
--- Lifetime : above 30 years
--- Operating temperature : -40℃~+70℃
--- Permisson bent radius
Static : 10 times O.D. Dynamic : 20 times O.D.
Optical Charateristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
|
Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
Application:
Aeiral or Duct.
Standard:
YD/T 769-2010
