Communication Network GYXY Outdoor Fiber Optic Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYXY |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Outdoor Optical Fiber Cable | Fiber Type | G652D Single Mode |
|---|---|---|---|
| Fiber Count | 2-24 Cores | Structure | Unitube |
| Sheath Material | HDPE/MDPE | Highlight | GYXY Outdoor Fiber Optic Cable, Communication Outdoor Fiber Optic Cable, GYXY Armored Fiber Optic Cable |
| Name | Outdoor Optical Cable | ||
| Highlight | outdoor fiber optic cable G652D,single mode fiber optic cable HDPE,24 core outdoor optical cable |
||
Product Description
roduct Description
2-24 Core Outdoor Aerial Fiber Optic Cable Communication Network Optical Fiber Cable GYXY
Description:

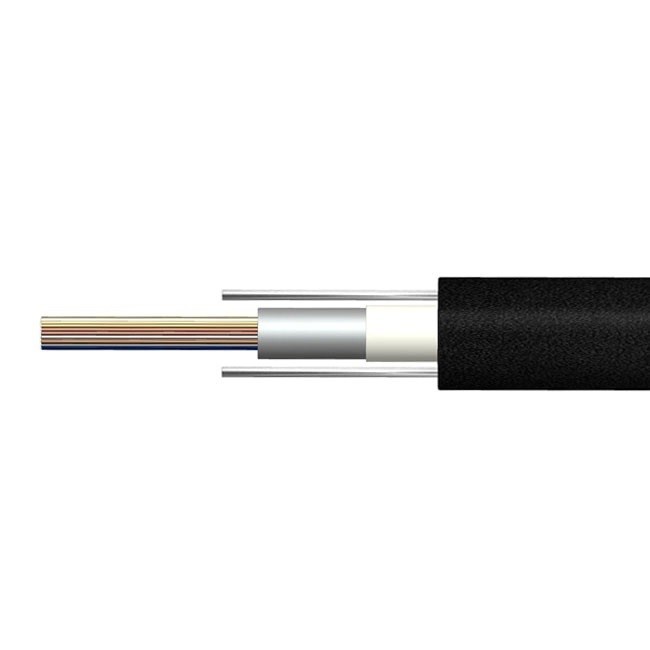

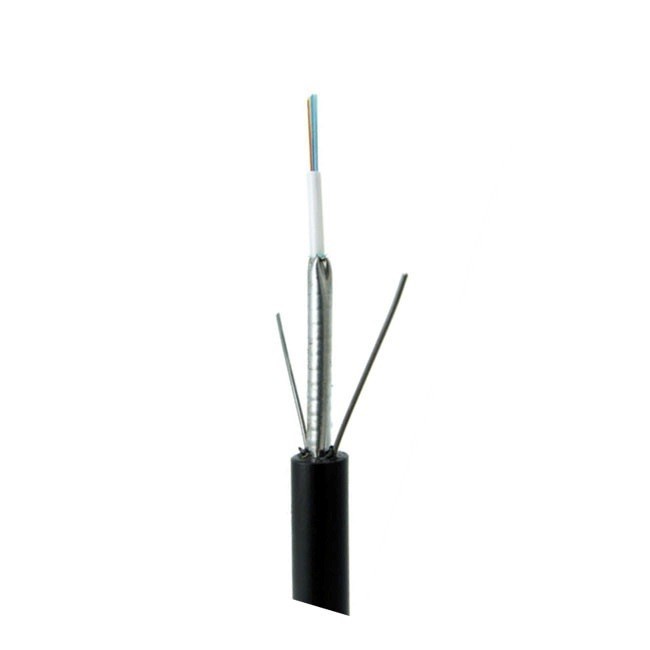

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
Features:
--- Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
--- Fiber : G652D
--- Installation : Suitable for aerial or duct
--- Application : Apply to Long distance communication system, Local area network system and Subscriber
network system
--- Lifetime : above 30 years
--- Operating temperature : -40℃~+70℃
--- Permisson bent radius
Static : 10 times O.D. Dynamic : 20 times O.D.
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
