Unitube Non-Armoured Multimode FTTH Fiber Optic Cable
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Product Details
| Product Name | Central Loose Tube Fiber Optic Cable | Cable Structure | Unitube Non-amoured |
|---|---|---|---|
| Jacket Material | PE,LSZH | Highlight | Duct Ftth Fiber Optic Cable, Unitube Ftth Fiber Optic Cable, Unitube Outdoor Multimode Fiber Optic Cable |
| Name | Outdoor Optical Cable | ||
| Highlight | Non-armoured FTTH fiber optic cable,Outdoor multimode fiber optic cable,FTTH cable with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Unitube Multimode Duct FTTH Fiber Optic Cable
Product Specifications
| Product Name | Central Loose Tube Fiber Optic Cable |
|---|---|
| Cable Structure | Unitube Non-armoured |
| Jacket Material | PE, LSZH |
| Highlight | Duct FTTH Fiber Optic Cable, Unitube FTTH Fiber Optic Cable, Unitube outdoor multimode fiber optic cable |
Unitube 2-24 Core Multimode Duct/Aerial FTTH Optic Fiber Cable GYXY/GYFXY Non-Armoured Optical Fiber Cable

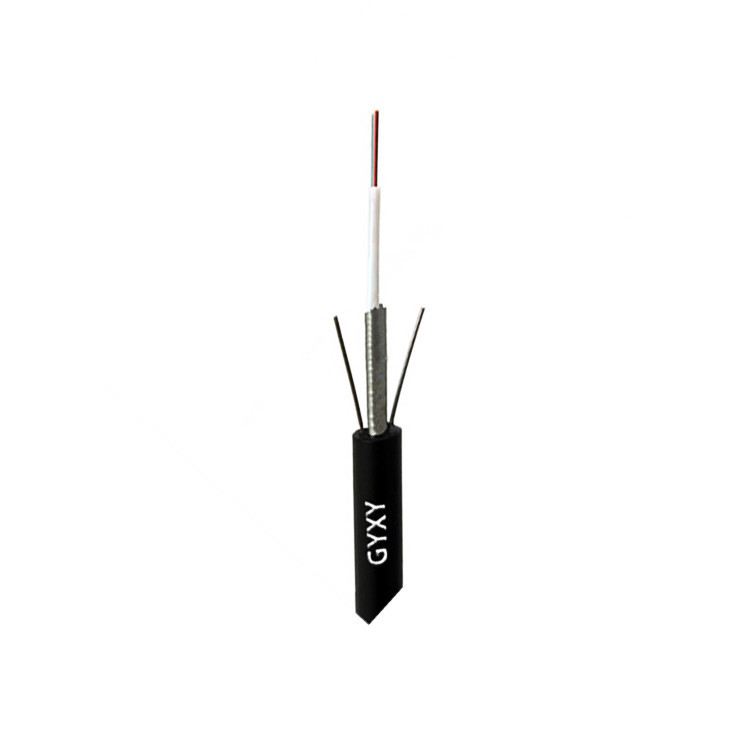

The fibers, 250μ M, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Key Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Two parallel steel wires ensure tensile strength
- PE sheath protects cable from ultraviolet radiation
- Small diameter, light weight and friendly installation
- Long delivery length
Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
Quality Commitment
Our product quality is consistently high. Every drum of cable is carefully tested with stringent criteria. As a result, our cables not only meet, but exceed the industry standard most of the time. We have total quality commitment to follow strictly the emerging standard and ever-changing technologies in data communications.
We produce and test cable comply with following standard:
