GYFTY53 Stranded Loose Tube Single Mode Armored Fiber Optic Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Aerial, Duct | Fiber Type | G652D, G657A1, G657A2 |
|---|---|---|---|
| Fiber Count | 2-288 Fibers | Central Strength Member | FRP |
| Armor | Corrugated Steel Tape | Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) |
| Highlight | GYFTY53 Armored Fiber Optic Cable, Single Mode Armored Fiber Optic Cable, GYFTY53 Loose Tube Fiber Cable | Name | Outdoor Optical Cable |
| Highlight | armored fiber optic cable outdoor,armored outdoor fiber optic cable,loose tube fiber optic cable outdoor |
||
Product Description
GYFTY53 Aerial/Duct Stranded Loose Tube Armored Outdoor Fiber Optic Cable
1. Description
The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied, the cable is completed with a PE outer sheath.
2. Features
- Good mechanical and temperature perfomance;
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- Crush resistance and flexibility
- The following measures are taken to ensure the cable watertight:
---FRP used as the central strength member
---Loose tube filling compound
---100% cable core filling
---PSP enhancing moisture-proof
---Water-blocking material
3.Specifications
| Cable Type | GYTY53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fibers per Tube | Max No. of (Tubes+fillers) | Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~30 | 12.2 | 142 | 6 | 5 | 3000 | 1000 | 3000 | 1000 |
| 32~48 | 12.8 | 155 | 8 | 6 | 3000 | 1000 | 3000 | 1000 |
| 50~72 | 13.6 | 170 | 12 | 6 | 3000 | 1000 | 3000 | 1000 |
| 74~96 | 15.0 | 192 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 98~144 | 16.6 | 220 | 12 | 12 | 3000 | 1000 | 3000 | 1000 |
| >144 | Available upon customer’s request | |||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

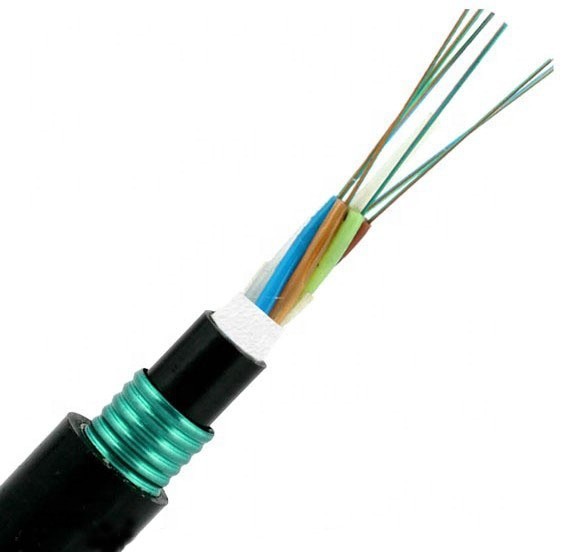

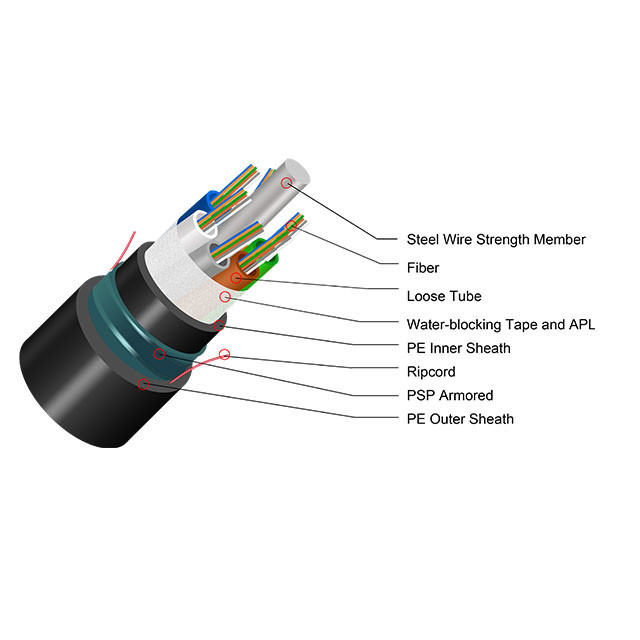

4. Structure and Product Pictures
5. Packing and Shipping

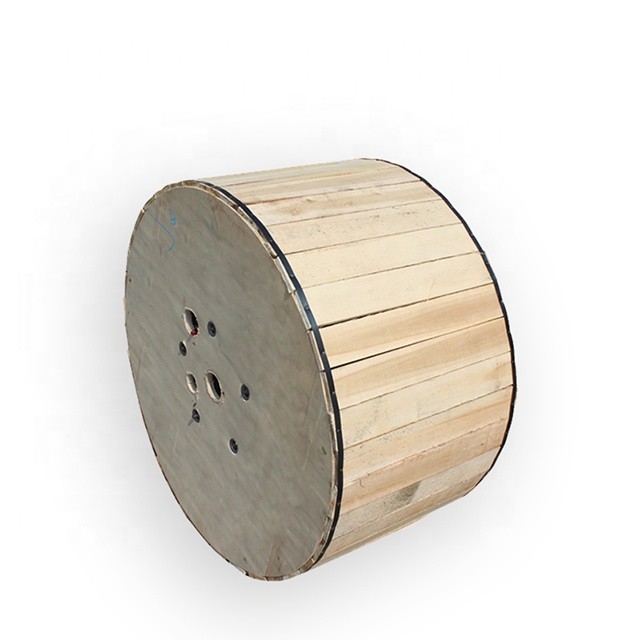

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
