6 Core GYTC8S Outdoor Fiber Optic Cable Multi Mode Armored 6 Core Fiber Optic Cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Outdoor Fiber Optic Cable Multi Mode | Product Name | Figure 8 Self-support Optical Cable |
|---|---|---|---|
| Application | Telecommunication,Aerial | Fiber Type | G652D,single Mode Or Multi Mode |
| Fiber Count | 2-288 Cores | Jacket Material | PE,LSZH,PVC |
| Installation | Self- Supporting Aerial | Highlight | GYTC8S Outdoor Fiber Optic Cable, 250μm Outdoor Fiber Optic Cable, 6 Core Outdoor Fiber Optic Cable |
| Highlight | GYTC8S Outdoor Fiber Optic Cable,Outdoor Fiber Optic Cable Multi Mode,Armored 6 Core Fiber Optic Cable |
||
Product Description

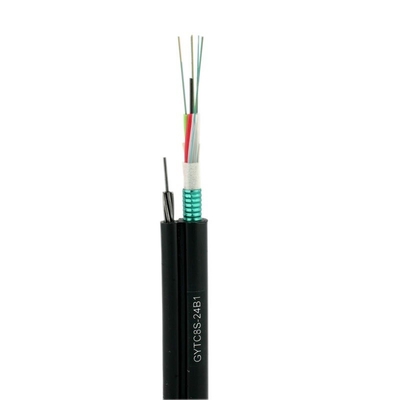

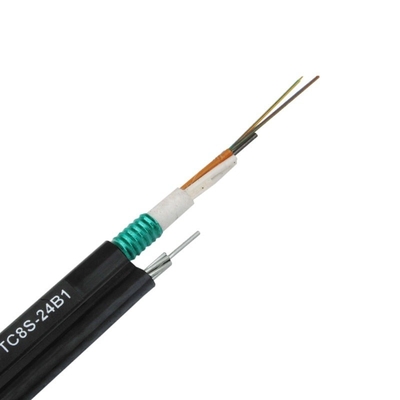

GYTC8S Outdoor Aerial Multi mode/Single Mode Self-supporting Figure 8 Armored 6 Core Fiber Optic Cable
Description:
The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.
Feature:
- The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
- Has good mechanical and temperature properties.
- The loose tube material itself has good hydrolysis resistance and high strength.
- The tube is filled with a special grease to protect the fiber.
- Double coated steel strip (PSP) improves the moisture resistance of the cable.
- Small diameter, light weight and easy to lay.
- Long delivery length and low price.
Product Parameters:
| Model | fiber cores | OD (outer dia.) |
Weight kg/km |
Tensile Strength Long /Short Term |
Crush Resistance Long/Short Term N /100mm |
Bending Radius Static /Dynamic mm |
| GYTC8S | 12-288 | 7-20mm | 70-300 | 3500/7000N | 300/1000 | 15D/30D |
| Cores no. | 2-42 | 44-72 | 74-84 | 86-96 | 98-108 | 110-120 | 122-132 | 134-144 |
| OD Outer diameter(mm) | 10.4 | 11.2 | 12.2 | 14.0 | 14.8 | 15.8 | 16.6 | 17.4 |
| Cable weigh(kg/km) | 90 | 100 | 115 | 180 | 195 | 220 | 240 | 265 |
Mechanical & Environmental Characteristics:
| Item | Characteristics | ||
| GYTC8S 2-72 | GYTC8S 74-96 | GYTC8S 98-144 | |
| Tensile Strength | 9000N | 10000N | 12000N |
| Crush Resistance | 1000/100mm | ||
| During Installation | 20 Times Cable Diameter | ||
| After Installation | 10 Times Cable Diameter | ||
| Messenger wire | Diameter: 1.2mmx7 steel wire strand | ||
| Storage(°c) | -50 to+70 | ||
| Operating(°c) | -40 to+60 | ||
Fiber G652D
| Category | Description | Specifications | ||
| Before cabling | After cabling |
|||
| Optical Specifications | Attenuation @1310 nm | ≤0.34 dB/km (max.) | ≤0.36 dB/km (max.) | |
| Attenuation @1550 nm | ≤0.20 dB/km (max.) | ≤0.22 dB/km (max.) | ||
| Attenuation @1625 nm | ≤0.23dB/km | ≤ 0.25 dB/km | ||
| Zero Dispersion Wavelength | 1300~1324 nm | |||
| Zero Dispersion Slope | ≤ 0.090 ps/nm2·km | |||
| PMD Link value (M=20cables Q=0.01% ) maximum PMDQ |
0.2 ps/√km | |||
| Cable Cutoff Wavelength (λcc) | ≤1260 nm | |||
| Macro bending Loss (1 turn; Ф32 mm) @1550 nm (100 turns; Ф60 mm) @1625 nm (100 turns; Ф50 mm) @1310 &@1625 nm |
≤ 0.05 dB ≤ 0.05 dB ≤0.05 dB |
|||
| Mode Field Diameter | @1310 nm | 9.2±0.4μm | ||
| @1550 nm | 10.4±0.5μm | |||
| Dimensional Specifications |
Cladding Diameter | 125 ±0.7μm | ||
| Core/clad concentricity error | ≤0.5μm | |||
| Cladding Non-Circularity | ≤1.0% | |||
| Mechanical Specifications |
Proof stress | ≥0.69Gpa | ||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
for more detailed information.
Application:
- Aerial
- Long distance communication and LAN
- Indoor shaft, building wire
