GYTY53 Armoured Fiber Optic Cable 2-144 Core Single Mode
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTY53 |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Count | 2-144 Core | Fiber Type | G652D, Single Mode, OM3 |
|---|---|---|---|
| Inner Sheath | PE | Outer Jacket | PE+Steel Tape |
| Structure | Loose Tube | Strength Member | Phosphating Steel Wire |
| Water Blocking Material | Filling Compound | Sheath Material | LSZH, HDPE/MDPE, PE |
| Name | Outdoor Optical Cable | ||
| Highlight | armoured fiber optic cable outdoor,single mode fiber optic cable 144 core,outdoor optical cable with warranty |
||
You can tick the products you need and communicate with us in the message board.
Product Description
GYTY53 Communication Large Core Structure Fiber Optic Armoured Cable
Product Specifications
| Attribute | Value |
|---|---|
| Fiber Count | 2-144 Core |
| Fiber Type | G652D, Single Mode, OM3 |
| Inner Sheath | PE |
| Outer Jacket | PE+Steel Tape |
| Structure | Loose Tube |
| Strength Member | Phosphating Steel Wire |
| Water Blocking Material | Filling Compound |
| Sheath Material | LSZH, HDPE/MDPE, PE |
Product Gallery
Cable Structure

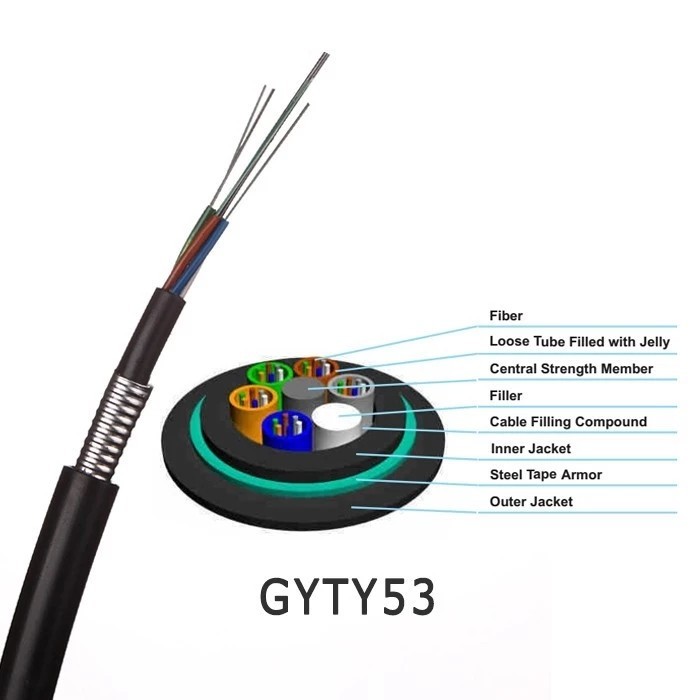

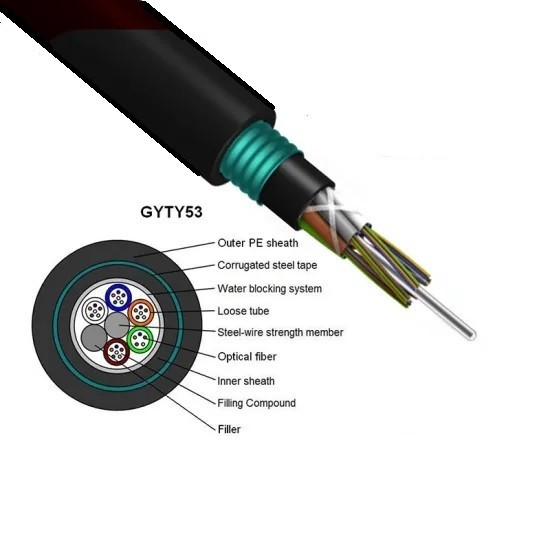

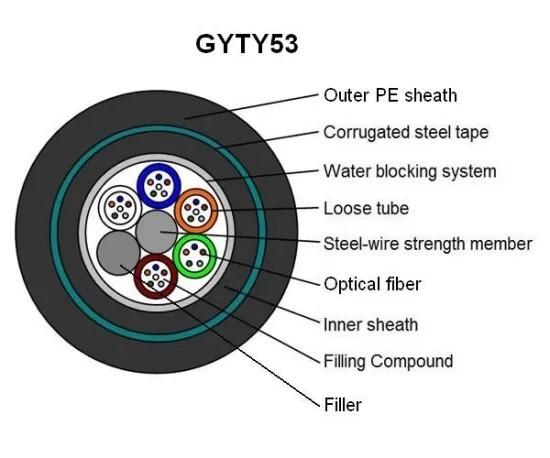

The GYTY53 optical cable features 250μm optical fiber sheathed in a loose tube made of high modulus material, filled with waterproof compound. The cable core centers around a metal reinforced core, with some cables requiring an additional polyethylene (PE) layer extruded outside this core. Loose tubes (and filler ropes) are twisted around the central reinforcing core to form a compact, round cable core, with gaps filled by water blocking materials. The structure includes a polyethylene inner sheath and double-sided plastic coated steel tape (PSP) longitudinally wrapped with a polyethylene outer sheath.
Key Features
- Utilizes "SZ" bidirectional layer twisting technology
- Comprehensive water-blocking with step-by-step ointment filling
- Steel/aluminum tape with reliable edge bonding and high twist resistance
- Precise fiber excess length control
- Minimal additional fiber attenuation and stable dispersion values
- Excellent environmental performance (-10℃ to +70℃ operating range)
Technical Details
Cable Core
The loose tubes are stranded around the central strength member using SZ stranding technology, which alternates wrapping direction for optimal performance.
Central Strength Member
Steel-reinforced core provides both tensile strength and anti-buckling properties.
Loose Tube
Optical fibers are housed in jelly-filled tubes made of industry-standard PBT material, color-coded for easy identification.
Water Blocking Material
Filling compound between loose tubes and inner sheath provides comprehensive water protection.
Armour
Corrugated steel tape offers compression strength, crush resistance, rodent protection, and bullet resistance.
Outer Jacket
Black high-density polyethylene jacket extruded over the cable core and armor.
Cable Sheath Marking
Each cable clearly displays manufacturer name, production year, cable/fiber type, length markings, and optional customer requirements.
Special Notes
1. Flame retardant versions (GYTZS) available with LSZH outer sheath material.
2. Custom color-striped outer sheaths available upon request (see GYTA series).
3. Special cable structures can be designed and manufactured to customer specifications.
