GYTS 6 Core Loose Tube Optical Fiber Cable For Telecommunication manufacture directly
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication | Fiber Type | GYTS |
|---|---|---|---|
| Type | Singlemode & Multimode | Fiber Count | 6 Core |
| Jacket Material | PE,LSZH | Oem | Available |
| Structure | Loose Tube | Operating Temperature | -40~75 |
| Highlight | Loose Tube Optical Fiber Cable, GYTS Optical Fiber Cable, LSZH Jacket Optical Fiber Cord | Name | Outdoor Optical Cable |
| Highlight | gyts fiber optic cable outdoor,gyts outdoor fiber optic cable,6 core fiber optic cable outdoor |
||
Product Description

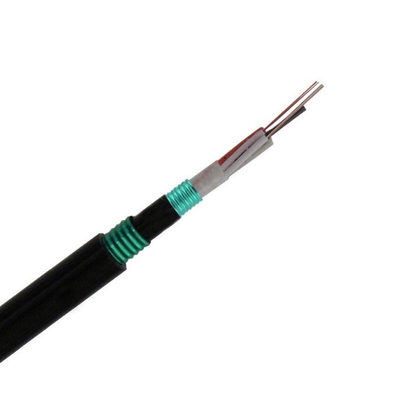

GYTS Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.
6 Core Optical Fiber Cable Micro Duct Size Fiber Optic Cable Air Duct Micro Blown Duct 6 Core Fiber Optic Cable
Features:
Choice of Fibre Type
Colour code of Fibre
High water resistance
High crush resistance
Choice Sheath Material
Low attenuation and dispersion
Good flexibility and bending performance
Appicable fieds:
Aerial, Duct

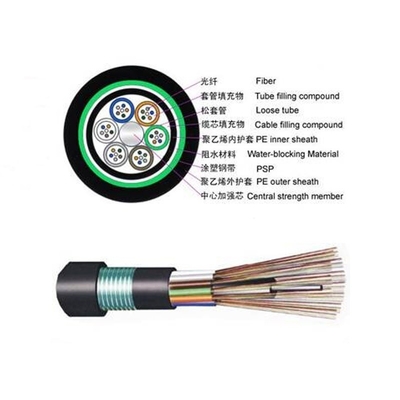

Structure Characters:
Metalic strengthen member(phosphated steel wire)
Double coated PE Crrugated steel tape under PE sheath
Technical Characteristics:
| Fiber range | Cable outer diameter | Cable weight | Min.bending radius |
Alowable tension |
Max.crush loading force |
|||
| Static | Dynamic | Short | Long | Short | Long | |||
| 2-30 | 9.8 | 115 |
10times cable diameter |
20times cable diameter |
1500 |
600 |
1000 |
300 |
| 32-36 | 10.6 | 140 | ||||||
| 38-60 | 11 | 140 | ||||||
| 62-72 | 11.6 | 165 | ||||||
| 74-96 | 13.2 | 205 | ||||||
| 98-120 | 14.7 | 245 | ||||||
| 122-144 | 16.1 | 285 | ||||||
| 146-216 | 16.6 | 300 | ||||||
| 218-240 | 19.8 | 395 | ||||||
| 242-288 | 22 | 470 | ||||||
. Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
