GYXTC8S Outdoor Fiber Optic Cable Central Tube Self Support Armored Aerial cable
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication, Aerial, Duct, Telecom, Network | Fiber | G652D, G657A1, G657A2 |
|---|---|---|---|
| Fiber Count | 2-24 Fibers | Armor | Corrugated Steel Tape |
| Outer Jacket | Black UV-and Moisture-resistant Polyethylene(PE) | Messenger Wire | Stranded Steel Wire |
| Highlight | 8 Core Single Mode Fiber Optic Cable, 4 Core Single Mode Fiber Optic Cable, 2 FRP 2 Core Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | gyxtc8s outdoor fiber optic cable,gyxtc8s fiber optic cable outdoor,armored fiber optic cable outdoor |
||
Product Description
1. Description
GYXTC8S fiber optic cable is a figure 8 structure cable suitable for installation in aerial environment for long haul communications. This optical cable is 2 core to 144 core types available.

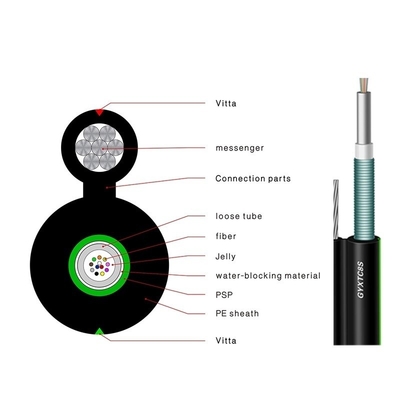

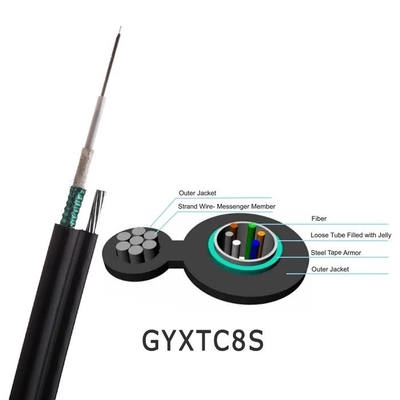

GYXTC8S features the centrally situated loose tube with good excess length and minimize the influence of lateral crush. The water resistant tape provides water tight property. Corrugated steel tape armor and the PE outer sheath of GYXTC8S fiber optic cable provide crush resistance and gun shot resistance. The cross section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.
2.Specifications
2.1 General Specifications
| Cable Type | GYXTC8S |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
2.2 Structure and Technical Specifications
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.6*15.6 | 142 | 7000 | 4000 | 1000 | 300 |
| >12 | Available upon customer's request | |||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
3. We produce and test the cable complying with the following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
4. Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate non-returnable wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable on each reel will be completely covered with a thermal wrap which is fastened to the cable by packaging straps. This wrap is reusable and provides excellent thermal and UV protection.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
