LSZH Jacket FTTH Drop Cable with Messenger Wire 2 Core G657A1
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GJYXFCH |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Telecommunication, Telecom, Network | Fiber Type | G657A1 Or A2, G652D |
|---|---|---|---|
| Fiber Count | 2 Core | Jacket | PE Or LSZH Outer Sheath |
| Installation | Self- Supporting Aerial | Strength Member | Two Steel Wire |
| Highlight | Messenger Wire Ftth Drop Cable, LSZH Jacket Ftth Drop Cable, Fiber Optic Ftth Drop Cable | Name | Outdoor Optical Cable |
| Highlight | LSZH FTTH drop cable with messenger wire,Outdoor optical cable G657A1,2 core fiber optic drop cable |
||
You can tick the products you need and communicate with us in the message board.
Product Description
PVC or LSZH Jacket Messenger Wire FTTH Drop Cable Fiber Optic
Product Attributes
| Attribute | Value |
|---|---|
| Application | Telecommunication, Telecom, Network |
| Fiber Type | G657A1 Or A2, G652D |
| Fiber Count | 2 Core |
| Jacket | PE Or LSZH Outer Sheath |
| Installation | Self-Supporting Aerial |
| Strength Member | Two Steel Wire |
Product Highlights
- Messenger Wire FTTH Drop Cable
- LSZH Jacket FTTH Drop Cable
- Fiber Optic FTTH Drop Cable
Product Description
LSZH jacket FTTH Outdoor Indoor GJYXFCH Fiber Optic Drop Cable with Messenger Wire
Description

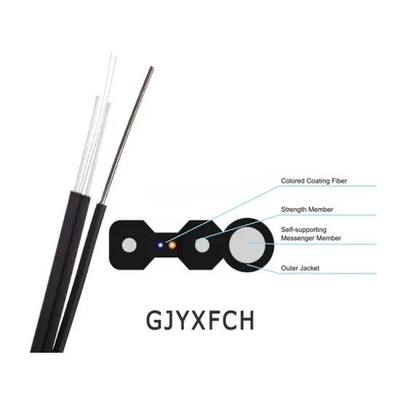

The cable's cross-section, which is a figure-8 shape, is made of a steel wire strength member, and it is self-supported flat drop cable.
Cable Structure

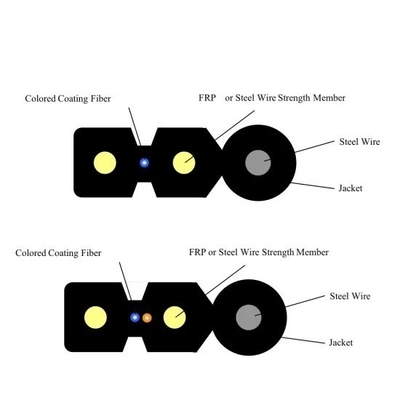

The design of the cross-section is bow-tie type, and it consists of two parallel steel wires as strength members, with G657A1 flex durable fiber in the middle. The outer sheath can be made of PE or LSZH material, and the messenger is a 1.0mm steel wire.
Product Construction
- Fiber: 250µm colorfiber
- Strength Member: Fiberglass reinforced plastic (FRP) or Steel Wire
- Self-supported Member: Steel Wire
- Outer Jacket: UV and Flame resistant LSZH
Features
Compact, soft, flexible, install easily.
Applications
This cable is commonly used as an access cable in outdoor-to-indoor customer premises networks. It can also be used as an access building cable in premises distribution systems, particularly for indoor or outdoor aerial access cabling.
Note: This datasheet is for reference, please contact us for more details. The cable core is made up of colored coating fiber with a diameter of 250μm. The cable's tensile and crush properties conform to the values specified in the table when FRP and steel strength members are used.
