2 FRP 6 core Single Mode Fiber Optic Cable GYFXTY
| Place of Origin | Dongguan CHINA |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation |
| Payment Terms | L/C,T/T |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model No | GYFXTY | Outer Sheath Material | PE |
|---|---|---|---|
| Strength Member | PBT With Jerry | Fiber Count | 2-288 Cores |
| Waterblocking Material | Water Blocking Tape Or Filling Compound | Loose Tube Material | Loose Tube |
| Highlight | 8 Core Single Mode Fiber Optic Cable, 4 Core Single Mode Fiber Optic Cable, 2 FRP 2 Core Fiber Optic Cable | Name | Outdoor Optical Cable |
| Highlight | 2 core 6 core single mode fiber optic cable,loose tube 6 core single mode fiber optic cable,2 core 6 core single mode armoured fiber optic cable |
||
Product Description
6 Core Single Mode Fiber Optic Cable GYFXTY
|
Brand
|
TW-SCIE OR OEM
|
|
Optical Fiber Type
|
Singel Mode G652D
|
|
Jacket Material
|
PE
|
|
Fiber Count
|
6
|
|
Jacket Color
|
Black
|
|
Strength Member
|
2 Parallel FRP
|
|
Cable Diameter
|
8.2mm
|
|
Length
|
2000m per roll or customized
|
|
Gross Weight
|
35 kgs
|
|
Product functions and features
|

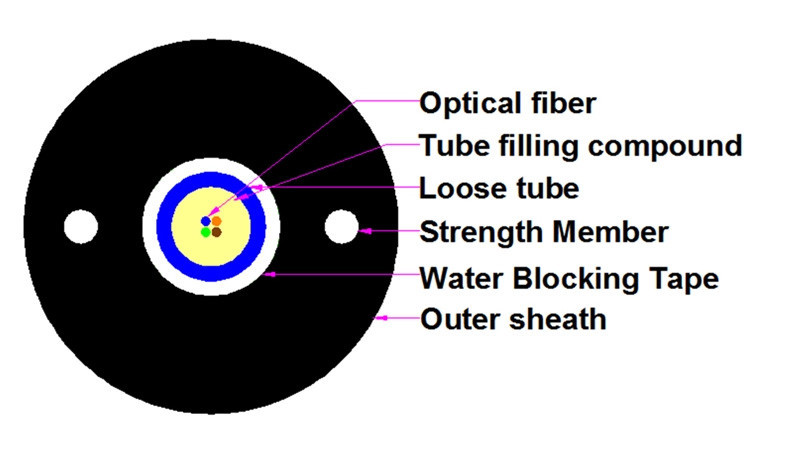

The structure of GYFXTY central beam tube optical cable is to insert 250um optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube is wrapped with a layer of aramid yarn(Made In China) longitudinally, and water blocking material is added between the aramid yarn and the loose tube to ensure the compactness of the optical cable and the longitudinal water blocking. Two parallel steel FRP are placed on both sides and the polyethylene sheath is extruded Into a cable.
|
Specification
| NO. of cable | 6 | |
| Fiber model | G.652D | |
| Strength Member | Material | FRP |
| Diameter(±0.05)mm | 1.8 | |
| Loose Tube | Material | PBT |
| Diameter(±0.06)mm | 1.8 | |
| Thickness(±0.03)mm | 0.35 | |
| The max core No./tube | 12 | |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 6.7 | |
| Cable Weight(±5) kg/km | 38 | |
| Min. Bending Radius | Without tension | 10.0x Cable-φ |
| Under Maximum Tension | 20.0x Cable-φ | |
| Temperature range(℃) | Installation | -20~+60 |
| Transport & Storage | -40~+70 | |
| Operation | -40~+70 |
