GYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single Mode
| Place of Origin | Dong Guan China |
|---|---|
| Brand Name | MingTong |
| Certification | ISO |
| Model Number | GYTA53 |
| Minimum Order Quantity | 20km |
| Price | 500-3000RNB/KM |
| Packaging Details | Wooden scroll + cardboard box / Wooden scroll + wooden board |
| Delivery Time | It depends on the actual situation. |
| Payment Terms | T/T,L/C |
| Supply Ability | 200km/Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Outdoor Fiber Optic Cable GYTA53 | Structure | Loose Tube Strand |
|---|---|---|---|
| Fiber Type | G652D Single Mode | Fiber Count | 2-288 Core |
| Strength Member | Steel Wire | Highlight | GYTA53 Armored Outdoor Fiber Optic Cable, HDPE Armored Outdoor Fiber Optic Cable, GYTA53 Shielded Fiber Optic Cable |
| Name | Outdoor Optical Cable | ||
| Highlight | armored outdoor fiber optic cable,single mode fiber optic cable,288 core fiber optic cable |
||
You can tick the products you need and communicate with us in the message board.
Product Description
GYTA53 Armored Outdoor Fiber Optic Cable 2-288 Core Single Mode
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Outdoor Fiber Optic Cable GYTA53 |
| Structure | Loose Tube Strand |
| Fiber Type | G652D Single Mode |
| Fiber Count | 2-288 Core |
| Strength Member | Steel Wire |
Key Features: GYTA53 Armored Outdoor Fiber Optic Cable, HDPE Armored Outdoor Fiber Optic Cable, GYTA53 shielded fiber optic cable
MDPE/HDPE Double Sheath 2-288 Core GYTA53 Armored Fiber Optic Cable
Underground Direct Burial
The fibers (200/250μm) are positioned in a high modulus plastic loose tube filled with water-resistant compound. A steel wire (PE-sheathed for high fiber count cables) serves as the central strength member. Tubes are stranded around this member into a compact core, protected by Aluminum Polyethylene Laminate (APL) and filling compound against water ingress. The core is covered with a thin PE inner sheath, followed by PSP application and PE outer sheath.

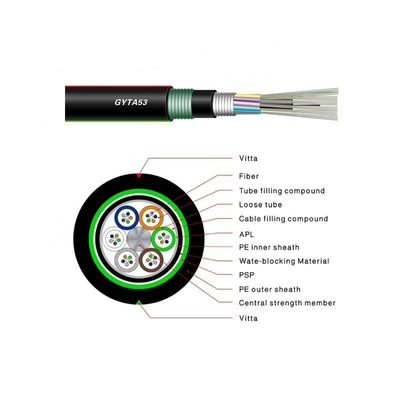

Cable Structure
- Single steel wire central strength member with PE sheath
- Loose tube filled with special waterproof compound
- Full core filling jelly
- Double corrugated steel tape armored
- Anti-UV PE outer jacket
Key Features
- Excellent mechanical and temperature performance
- High-strength, hydrolysis-resistant loose tube
- Special tube filling compound for optimal fiber protection
- UV-resistant PE sheath
- Superior crush resistance for duct and direct burial applications
- Comprehensive waterproof protection through:
- Central steel wire strength member
- Special tube filling compound
- Complete cable core filling
- Double APL moisture barriers
- Effective water-blocking tape for vertical protection
